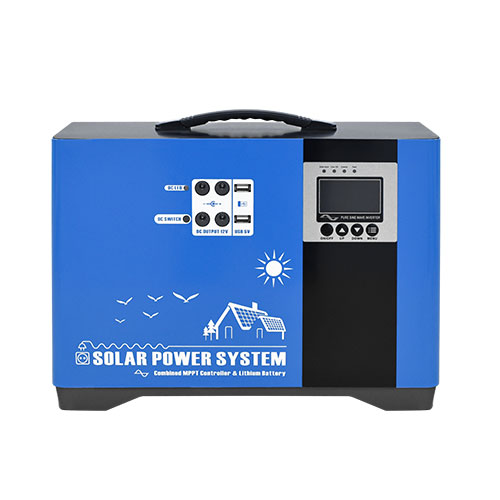

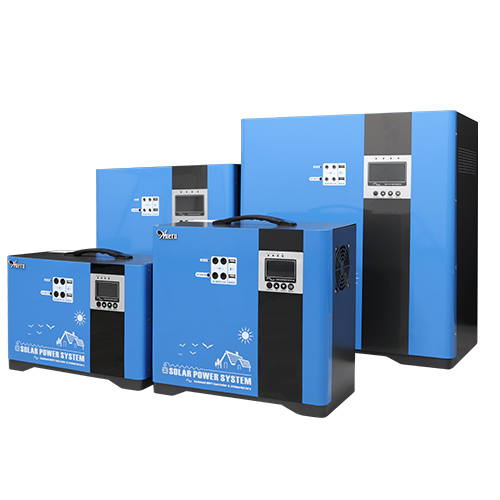

Portable Lithium Battery Solar Storage System

Portable Lithium Battery Solar Storage System

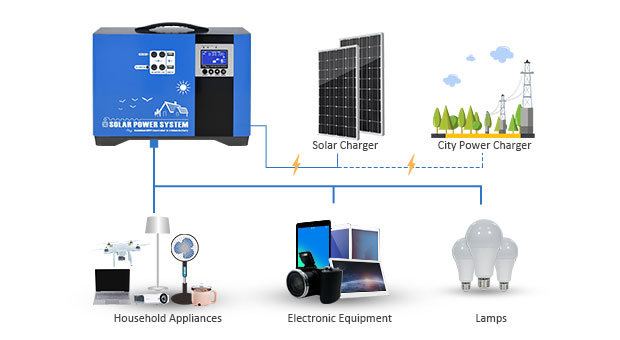

Anern's latest MPSG-N series solar storage system with built-in LiFePO4 lithium battery. Excellent performance because of double CPU intelligent control technology. Just connect the solar panels to power the load. MPPT Controller greatly improving the charging efficiency more than 20%. Safe and reliable with intelligent exhaust fan control. Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc.


Send Inquiry

Parameter of Portable Lithium Battery Solar Storage System

Model

MPSG-N-500

MPSG-N-1000MPSG-N-2000MPSG-N-3000
MPSG-N-5000

RATED POWER

500W

1000W

2000W3000W
5000W

Battery Voltage

12.8V

25.6V

25.6v25.6V48V

Speficifation Of Built-in LiFePO4 Battery

600WH

1200WH

2500WH3000WH5000WH

Max. PV Power

240W

480W

800W1500W3000W

Range Of Charging Voltage

15-90VDC

30-90VDC

30-90VDC30-130VDC60-160VDC

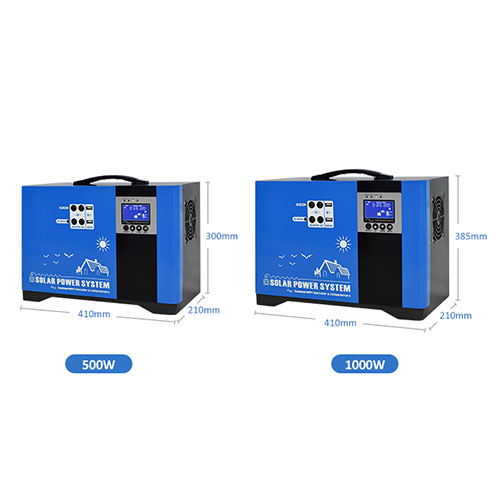

External Size:W*D*H

410*210*300mm

410*210*385mm

460*275*495mm460*275*495mm550*300*600mm

Heat Dissipation/Cooling

Temperature control by intelligent exhaust fan

Input Voltage Range

110/220VAC±10%

5VDC USB Output

2units/MAX 2A

12VDC Output Ports

2units/MAX 2A



Advantages of Portable Lithium Battery Solar Storage System

Advantages of Portable Lithium Battery Solar Storage System

Advantages of Portable Lithium Battery Solar Storage System
Superior performance

Excellent performance because of double CPU intelligent control technology.

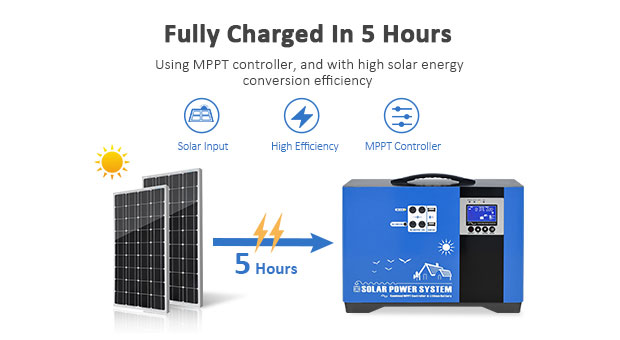

MPPT Controller greatly improving the charging efficiency more than 20%.

Advantages of Portable Lithium Battery Solar Storage System

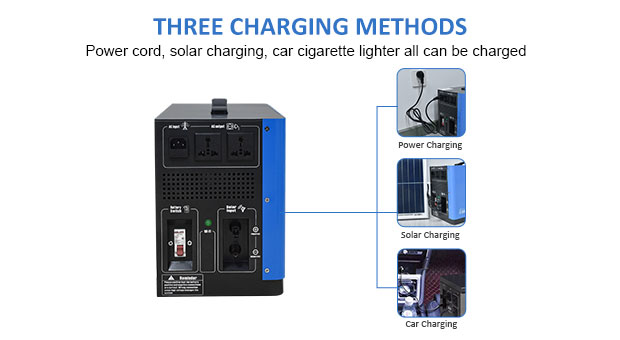

Three charging options

Built-in LiFePO4 lithium battery.

Power cord, solar charging, car cigarette lighter all can be charged

Overcharge protection and overdischarge protection for a longer battery life.

Advantages of Portable Lithium Battery Solar Storage System
Easy to use

Convenient and practical 5VDC-USB output port and 12VDC output port.

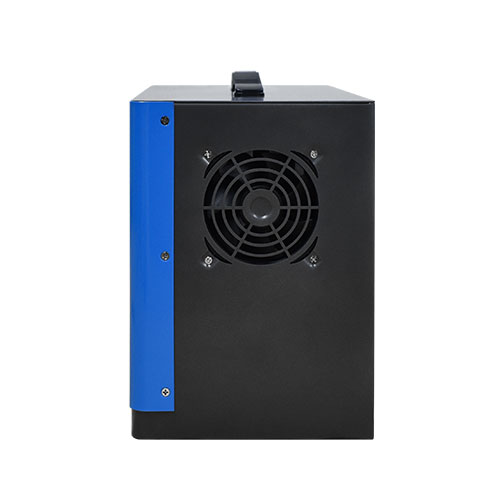

Safe and reliable with intelligent exhaust fan control.

Advantages of Portable Lithium Battery Solar Storage System
Flexible mode setting

Mains supply mode/energy-saving mode/battery mode can be set for flexibility.

Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc.

ANERN Portable Lithium Battery Solar Storage System Factory

Anern has a professional automated factory and introduces advanced automated production equipment. All products have passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.


  • anern portable lithium battery solar storage system factory 5
  • anern portable lithium battery solar storage system factory 4
  • anern portable lithium battery solar storage system factory 3
  • anern portable lithium battery solar storage system factory 2
  • anern portable lithium battery solar storage system factory 1
  • anern portable lithium battery solar storage system factory 6
anern portable lithium battery solar storage system factory 5
anern portable lithium battery solar storage system factory 4
anern portable lithium battery solar storage system factory 3
anern portable lithium battery solar storage system factory 2
anern portable lithium battery solar storage system factory 1
anern portable lithium battery solar storage system factory 6
Get in Touch with ANERN
Professional service

Focus on providing customers with one-to-one services, and one-stop solar system solutions.

Patented design products

Anern has set up a professional R&D team, 70% of the products are exclusively designed.

Worldwide partners

Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.

Factory Outlet

Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
