Anern, with 16 years of experience in the energy industry, from solar systems to solar accessories, from indoor LED lighting to outdoor solar lighting, we are one of the sources to meet your diverse needs.
Anern has 16 years of experience in solar lighting and solar product manufacturing. Anern is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.

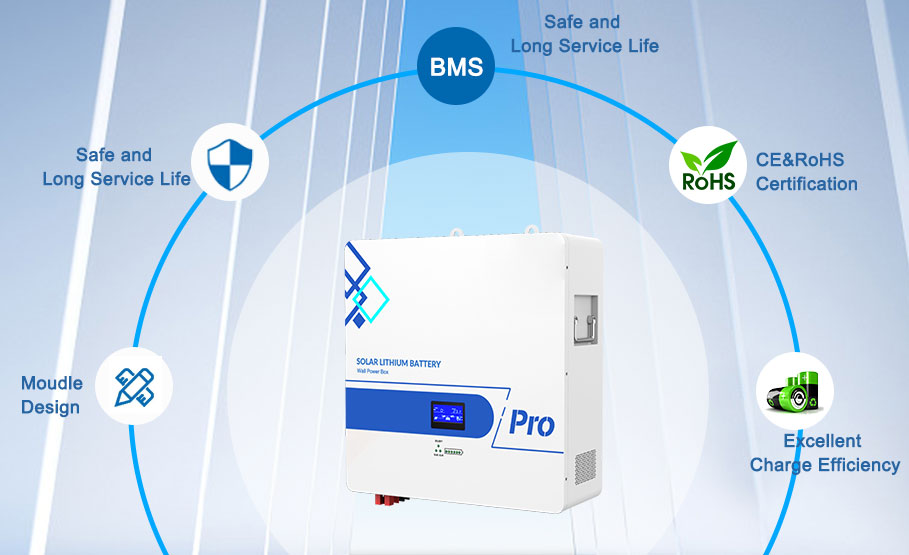

Introducing Anern's 100Ah LiFePO4 battery, a reliable and efficient energy storage solution for your power needs. Engineered with advanced LiFePO4 technology, it boasts a cycle life up to 20 times longer than traditional lead-acid batteries, significantly reducing replacement costs. The built-in intelligent battery management system (BMS) provides comprehensive protection, including overcharge and discharge safeguards. Compact and lightweight, the 100Ah lithium battery is ideal for various applications, delivering superior safety and reliability.
| Model | AN-LPB-N-24100 | AN-LPB-N-48100 | AN-LPB-N-24100 | AN-LPB-R-48100 | AN-LFP12100 | |
| Product Name | AN-LPB-Npro Series 24V100AH Wall-mounted Lithium Battery | AN-LPB-Npro Series 24V200AH-48V100AH Wall-mounted Lithium Battery | Wall-mounted Lithium Battery 25.6V100AH/51.2V100AH | AN-LPB-R Series Rack Type Lithium Battery 48V100AH 48V200AH | AN-LFP Series Lithium Battery 12.8V100AH | |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Typical Capacity (AH) | 100AH | 100AH | 100AH | 100AH Total Capacity | 100AH | 100AH |
| Typical Voltage (V) | 25.6V | 51.2V | 25.6V | 614.4V Nominal Voltage | 48V | 12.8V |
| Energy Storage (Kwh) | 2.56Kwh | 5.12Kwh | 2.56WH | 61.44KWH Total Capacity | 4.8Kwh | 1280WH |
| Working Temperature (℃) | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55°C Discharge: -20-+60°C | Charge: 0-+55°C Discharge: -20-+60°C | |
| Max. Charge Current (A) | 100A | 100A | 100A | 100A | 50A | 50A |
| Max. Discharge Current (A) | 100A | 100A | 100A | 50A | 100A | 100A |
| Dimension (mm) | 485*300*180mm | 485*475*180mm | 485*300*179mm | 584(W)*1094(D)*1500(H)mm | 442*500*155mm | 330*172*215mm |
| IP Grade | IP54 | IP54 | IP54 | IP54 | IP54 | |
| Communication | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN | CAN/RS485 | ||
| Certifications | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS |
Front operation, front wiring, wall-mounted installation, easy maintenance
Contains no heavy metals and harmful substances, environmentally friendly
Can be recycled to reduce the pollution of waste batteries to the environment
Compared to traditional lead-acid batteries, lithium batteries feature a significantly higher energy density, allowing them to store more power within the same volume and weight. This leads to longer usage time and improved efficiency.
Can be used in the temperature range of -20℃ - 60℃, our solar lithium lron phosphate (LiFePO4) battery can meet the needs of high frequency and deep degrees of discharge.
Using 100Ah solar system comes with numerous benefits, including a longer lifespan, faster charging, superior safety, and higher efficiency. The compact design, low maintenance, and environmental friendliness of lithium solar battery 100Ah make them an ideal choice for solar energy storage, whether you're powering your home, cabin, or business. By investing in a 100Ah lithium battery, you’re ensuring that your solar system operates at peak performance, provides reliable energy, and offers long-term savings.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
