We have cooperated with more than 200 countries in solar energy projects and road lighting projects. We have exported products to many countries and participated in many important government projects around the world.
RESIDENTIAL & SMALL LOADS

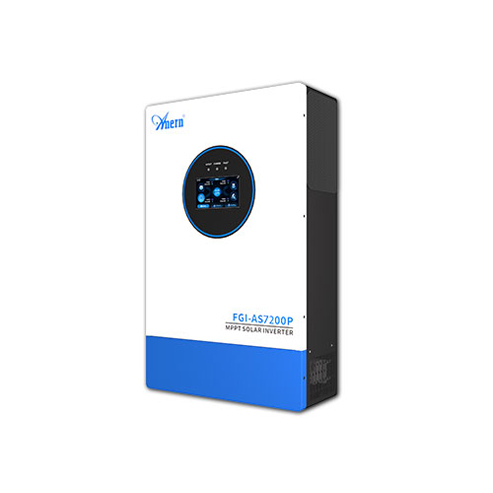

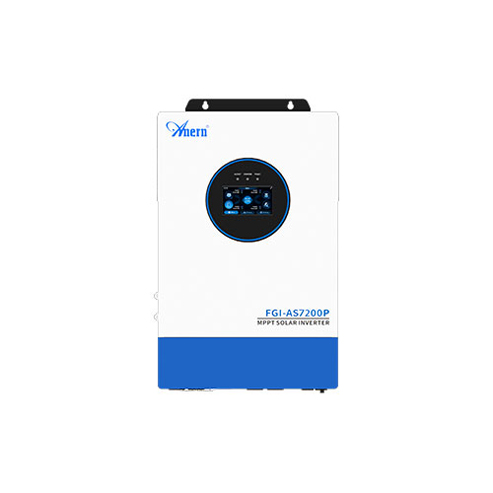

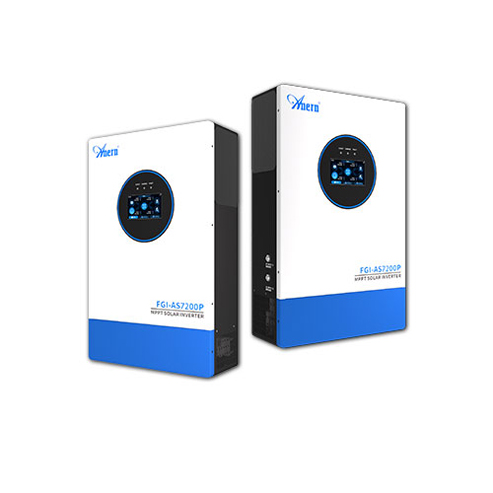

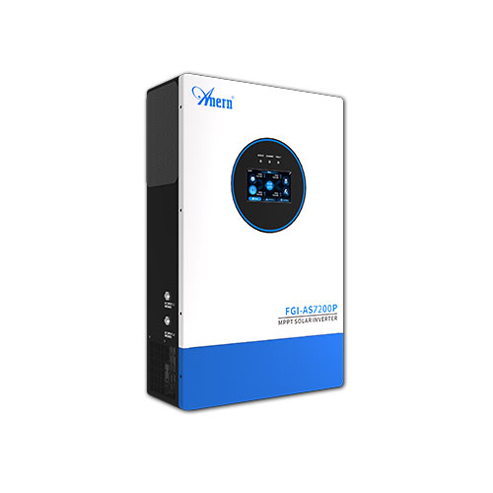

7.2kW Pure Sine Wave Solar Inverter
A high-capacity 7.2kW solar inverter designed for solar distributors, EPC contractors, and system integrators, ideal for large residential off-grid systems, villa backup power, and scalable solar + lithium battery solutions in weak-grid markets.
Core Technology
What Is a 7.2kW Solar Inverter
A 7.2kW solar inverter is a high-power inverter widely used in large residential and villa energy systems, hybrid backup installations, and light commercial applications. It is designed to support multiple high-demand appliances simultaneously—such as refrigerators, freezers, washing machines, pumps, and selected air conditioners—while delivering stable pure sine wave output to protect sensitive electronics.
It is especially suitable for:
Large off-grid homes and villas
Hybrid backup systems in areas with frequent outages
High-load households using pumps, freezers, and multiple appliances
EPC projects requiring scalable PV + battery expansion
7200W
Continuous Output
14400W
Surge Capability
battery_charging_full
48V, 100Ah–200Ah
shield
Overload / Short Circuit / Overheat
layers
Anti-dust, Harsh Environment Durable
verified_user
Safe for Sensitive Electronics
package_2
Max Effciency 98%
trending_up
120A MPPT
layers
Ip65 Ingress Protection
currency_exchange
LCD Display
What Can a 7.2kW Inverter Run？
In practical installations, a 7.2kW inverter is typically used in systems where the total running load is around 3,000W–6,000W, leaving headroom for surge and motor start-up. A 720W inverter can power most household appliances such as lighting, TVs, routers, computers, refrigerators, freezers, washing machines, and water pumps—provided the combined load stays under 7.2kW and surge requirements are considered.
warning Not Recommended
Oversized HVAC systems, large electric heaters, or multiple heavy motor loads starting at the same time without proper load management.
Typical Load Planning for 7.2kW Systems
| Load Type | Power (W) | Project Suitability |
| Lighting (LED, whole house) | 150–500W | ✔ Standard |
| TV + Entertainment | 150–500W | ✔ Standard |
| Fans (multiple units) | 150–500W | ✔ Standard |
| Refrigerator (1–2 units) | 300–900W | ✔ Standard |
| Freezer | 200–600W | ✔ Standard |
| Washing Machine | 400–1200W | ⚠️ Model-dependent |
| Water Pump | 750–2000W | ⚠️ Surge-sensitive |
| Microwave / Electric Kettle | 800–2000W | ⚠️ Load-managed |
| Air Conditioner (inverter type) | 900–2500W | ⚠️ Limited / model-dependent |
| Central AC / Large Heater | >3000W | ❌ Not recommended |
System Design Rules for Installers
01
Rule 1: Use Only 80% Capacity
Total load must be < 7200W
Ideal operating load: ≤5760W
As an industry best practice, operating at around 80% of rated capacity ensures better thermal performance, improved efficiency, and longer inverter lifespan.
02
Rule 2: Consider Surge Power
Some appliances like refrigerators, pumps, and air conditioners may require 2–4× startup power.
A 7.2kW inverter is rated for 7200W continuous output, but it has 14400W Surge (Peak) Capability.
Continuous Power (7200W): the amount of power the inverter can provide continuously.
Surge Power (14400W): the short-term burst used to start motors or compressors.
03
Rule 3: Load Prioritization
Power critical loads first. Avoid simultaneous startup of appliances.
Typical Applications of the 7.2kW Inverter for Distributors & EPC Projects
A 7.2kW solar inverter is widely used in large residential systems and high-load hybrid applications. Based on pure sine wave output and a 48V battery architecture, here are the most common project scenarios for distributors and EPC contractors:
| Items | Scenario A: Full Home Off‑Grid System (Residential Kit) | Scenario B: Hybrid Backup for Unstable Grid Areas | Scenario C: Farm & Water Pumping Power Solution | Scenario D: Small Business / Light Commercial System |
| Application Positioning | Full-home off-grid solar power for villas | Backup + self-consumption for high-demand homes | Agricultural loads with motor start-up needs | Shops, offices, clinics, small facilities |
| Premium residential package for distributors | Strong fit for weak-grid regions | Supports pumps, freezers, tools | Higher-value EPC solar + battery packages | |
| Scalable PV + battery expansion path | Battery-based continuity power | Durable design for harsh environments | Stable daily load profiles and business continuity | |
| Typical Load Setup | Typical Load Setup (~300W–600W) | Typical Load Setup (~250W–580W) | Typical Load Setup (~300W–650W) | Typical Load Setup (~200W–550W) |
| LED Lighting: ~200W | Lighting + essentials: ~200W | Water Pump (intermittent): 750–200W | Lighting + signage: ~200W | |
| 2× Refrigerators: ~800W | Refrigerator + freezer: ~800W | Freezer / cold storage: 300–900W | Refrigerators / freezers: 500–150W | |
| Washing Machine: ~800W | Router + computers: ~200W | Fans + lighting: ~300W | POS + computers + router: ~200W | |
| TV + WiFi: ~150W | TV + fans: ~300W | Tools (intermittent): 500–200W | Small appliances: 800–200W | |
| Typical Use Cases | Villas, multi-room homes, large households | High-load homes needing stable backup | Farms, irrigation, rural facilities | Retail stores, clinics, offices, workshops |
| Key Advantages | Enables full-home solar packages | High user value: backup + savings | Designed for motor loads with surge planning | Higher-margin commercial-ready solutions |
| Pure sine wave for mixed appliances | High demand in weak-grid markets | Reduces fuel generator dependence | Easy upgrade path (PV/battery expansion) | |
| Strong upsell potential (larger battery/PV) | Installer-friendly for standardized deployments | Rugged for dusty/outdoor installations | Professional system standardization | |
| Commercial Value | ✔ High-ticket projects with better margins | ✔ Strong demand in developing regions | ✔ High-value rural/agri deployments | ✔ EPC-driven recurring orders |
| ✔ Ideal for distributor premium kit strategy | ✔ Strong lithium battery cross-sell | ✔ Long-term service and expansion revenue | ✔ Strong OEM / branding potential | |
| ✔ Easy system upgrades for partners | ✔ Repeat orders from installers | ✔ Fits agricultural electrification programs | ✔ Competitive bundled package positioning |
Choose a 7.2kW Inverter Configuration (Battery & PV Sizing)
wb_sunny
Solar Panel
Recommended Range: 7kW – 1.1kW depending on sunlight hours.
battery_full
Solar Battery
48V 100Ah – 200Ah Deep-cycle/Lithium configurations.
Note:
Slight PV oversizing improves system reliability and charging performance
Battery sizing depends on backup time and surge loads (typically 2–8 hours)
Compatible with lead-acid and lithium batteries
Frequently Asked Questions (FAQ)
Who typically buys a 7.2kW inverter system? expand_more
Installers, EPC contractors, and distributors serving villa owners, large households, farms, and small businesses that need higher daily power capacity.
What makes 7.2kW a popular size for premium residential systems? expand_more
It balances high usable output with practical 48V battery system design, making it suitable for multi-appliance households and scalable solar + storage packages.
Can a 7.2kW inverter be used for mixed loads (electronics + motors)? expand_more
Yes. Pure sine wave output supports sensitive devices while also powering motor-based appliances when surge planning and proper wiring are applied.
How do I avoid unexpected shutdowns in a 7.2kW installation? expand_more
Use a correctly sized 48V battery bank, minimize DC voltage drop with proper cable sizing, ensure ventilation, and avoid simultaneous start-up of multiple surge loads.
What is the best approach for sizing batteries for longer runtime? expand_more
Increase total battery capacity (Ah) based on required backup hours and expected night loads, and select batteries with sufficient discharge capability for peak demand.
What add-ons are commonly installed with a 7.2kW inverter for better user experience? expand_more
Smart monitoring, load scheduling, surge-friendly wiring/protection, and scalable PV/battery expansion options are commonly included in premium packages.
The 7.2kW solar inverter is a high-value, high-demand product that enables distributors and solar companies to serve premium residential energy needs and high-load backup markets. It offers:
High power capacity, Scalable system integration, Stable pure sine wave output, Reliable performance for residential and light commercial projects, Strong demand in weak-grid regions.
A 7.2kW inverter is best suited for large household and hybrid backup applications. It can efficiently run most home appliances—including multiple refrigerators, washing machines, pumps, and selected air conditioners—when the system is properly engineered. For optimal performance, keep continuous loads around ≤576W, plan for motor start-up surge, and avoid simultaneous start-up of multiple high-surge devices.
Why Choose Anern as Your Supplier
Product Advantages
Anern 7.2kW inverters are designed for high efficiency, durability, and stable output in villa-class solar systems and high-load hybrid installations.
Key features:
Pure sine wave output
Max efficiency up to 98%
48V system architecture for improved stability under load
Anti-dust, harsh-environment durable design with enhanced cooling
Comprehensive protections for safer installation and operation
LCD display for easy monitoring and configuration
Anern solar inverters are widely used in residential and off-grid applications worldwide.
Company Strengths
Experienced solar inverter manufacturer since 2009
Stable production capacity, with 7,000 square meters factory support.
Exported globally, more than 200 countries and regions worldwide.
OEM / Private Label Support
Reliable supply chain
Product documentation support
Full Technical & Project Support
Fast Delivery & Stable Supply
inventory
| Inverter Size | Recommended Load Range | Best Market Application | Typical Projects | Commercial Value | Not Recommended For |
| 1kW | <800W | Entry-level markets | Basic solar home systems, rural electrification | High volume, fast turnover | AC, heaters |
| 1.5kW | 800–1200W | Small residential | Apartments, backup systems with fridge | Best-selling entry model | Air conditioners |
| 2kW | 1200–1600W | Entry residential upgrade | Small homes, full basic usage | Balanced demand & margin | Large AC systems |
| 3kW | 1600–2500W | Mainstream residential | Standard home systems | High demand core product | Heavy industrial loads |
| 4kW | 2500–3200W | Mid-size residential | Homes with washing machines | Stable project demand | Central AC |
| 4.2kW | 2600–3400W | Hybrid system markets | Optimized hybrid installations | Higher margin hybrid solutions | Industrial use |
| 5kW | 3200–4000W | Standard residential | Full home systems | High-value, strong demand | Large HVAC systems |
| 6kW | 4000–5000W | Large residential | Multi-room houses | Premium residential segment | Heavy commercial |
| 6.2kW | 4200–5200W | Hybrid-focused markets | High-efficiency hybrid systems | High-margin niche | Industrial |
| 6.5kW | 4500–5500W | Premium residential | High-consumption homes | Upsell product | Factories |
| 7.2kW | 5000–6200W | Villa projects | AC + full appliances | High-ticket projects | Large commercial |
| 10kW | 7000–9000W | Large residential / light commercial | Villas, large homes | Project-based sales | Heavy industry |
| 10.2kW | 7200–9200W | Commercial hybrid | Stable high-load systems | EPC-focused projects | Factories |
| 12kW | 9000–11000W | Small commercial | Shops, offices | Commercial entry segment | Industrial plants |
Start Your Solar Distribution Business with Anern
Join hundreds of successful partners worldwide with high-turnover solar technology.
Get Bulk Pricing
