A solar inverter wiring diagram shows how the main electrical parts of a solar power system are connected. Based on the supplied Anern manuals and wiring drawings, a complete wiring diagram may include PV modules, battery packs, AC grid or generator input, AC load output, grounding, circuit breakers, communication cables, CT sensors and parallel communication lines for multi-inverter systems. The wiring method depends on the inverter model and the actual application scenario. The manuals repeatedly state that wiring and installation should be handled by qualified personnel, and that the matching user manual should be read before installation and operation.

Request Wiring Solution Download Manual

Hybrid Wiring

PV + Battery + Grid

BMS Comm

3-Phase Parallel

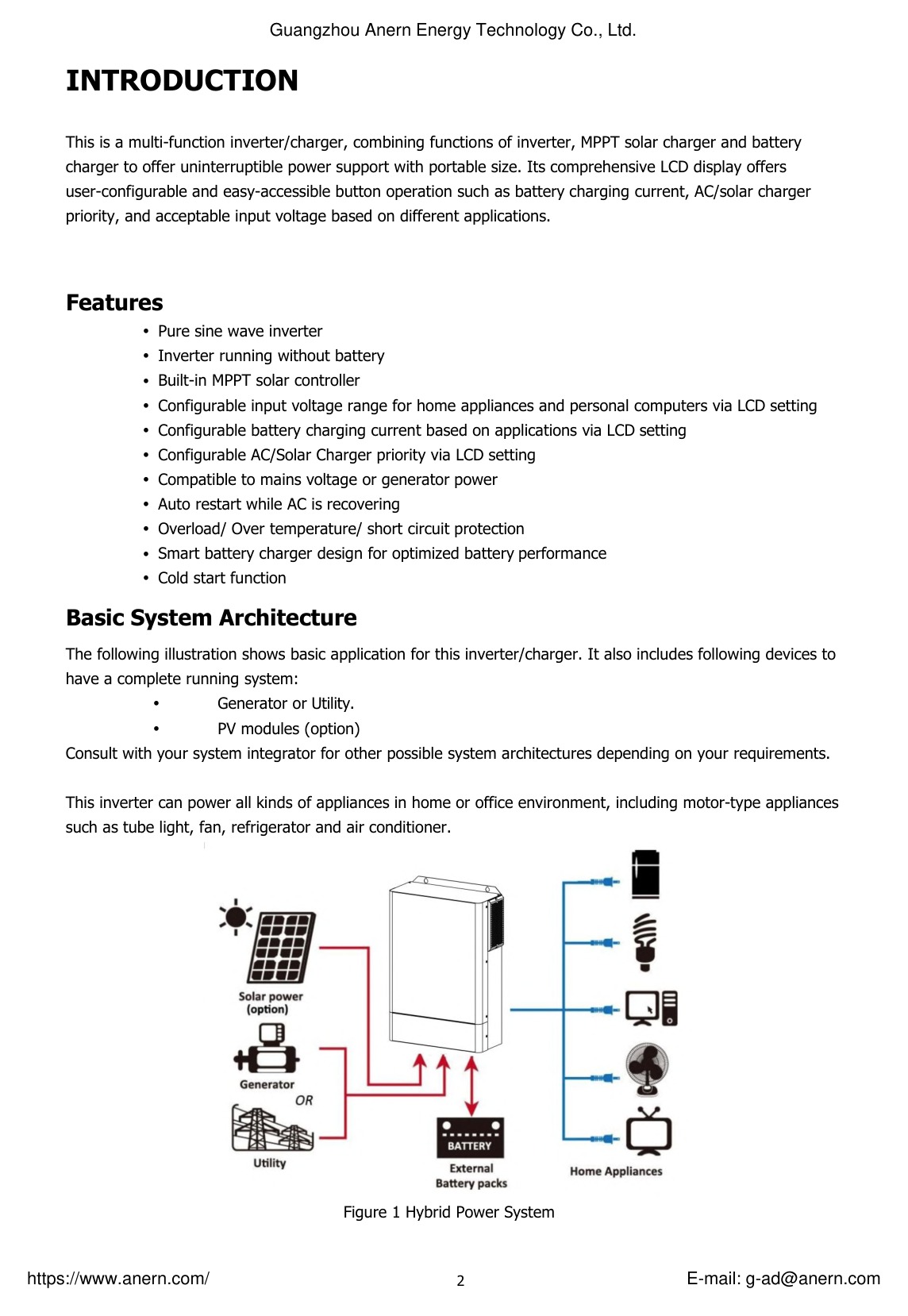

Preview: Figure 1. Basic hybrid solar inverter system architecture.

Quick Overview

Core components of a high-efficiency solar energy installation.

wb_sunny

PV Input

Optimized connection for solar arrays with MPPT tracking and protection.

battery_full

Battery Storage

Integrated BMS communication and DC cable sizing for lithium banks.

settings_input_hdmi

AC Input/Output

Grid connection and backup load wiring with phase alignment.

hub

Comm/Parallel

Advanced RS485/CAN communication for multi-inverter sync.

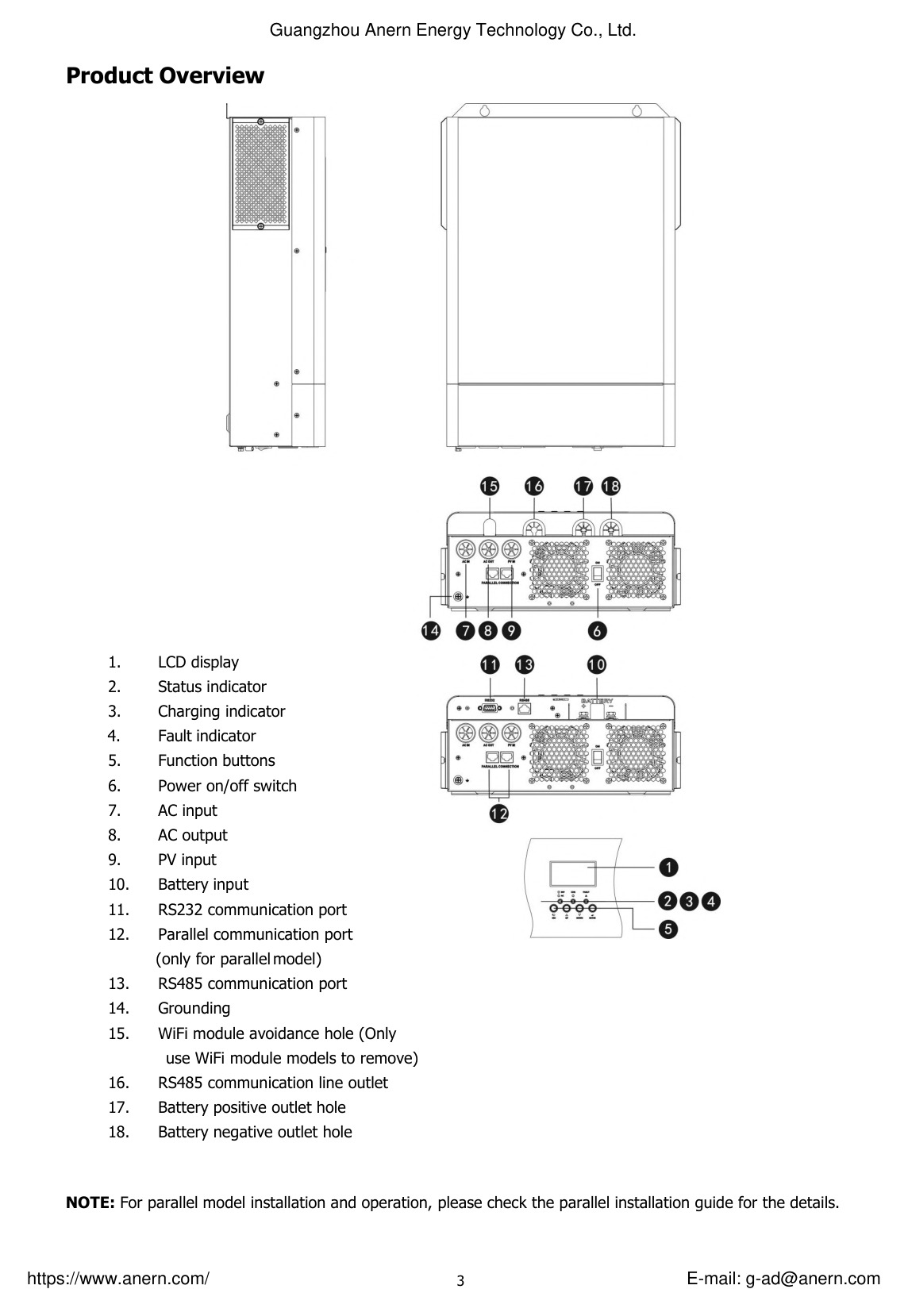

Figure 2. High-performance inverter port distribution and labeling.

Interface Reference

Technical Port Specifications

01 PV Input +

02 PV Input -

03 Battery +

04 Battery -

05 AC Grid L

06 AC Grid N

07 AC Load L

08 AC Load N

09 Earth Ground

10 CAN Port

warning

Safety and Installation Precautions

Always disconnect PV and Battery sources before any wiring operations.
Ensure correct polarity for DC connections to prevent damage.
Use appropriately rated circuit breakers for all input/output lines.
Wiring must be performed by certified electrical engineers.

Single Inverter Wiring

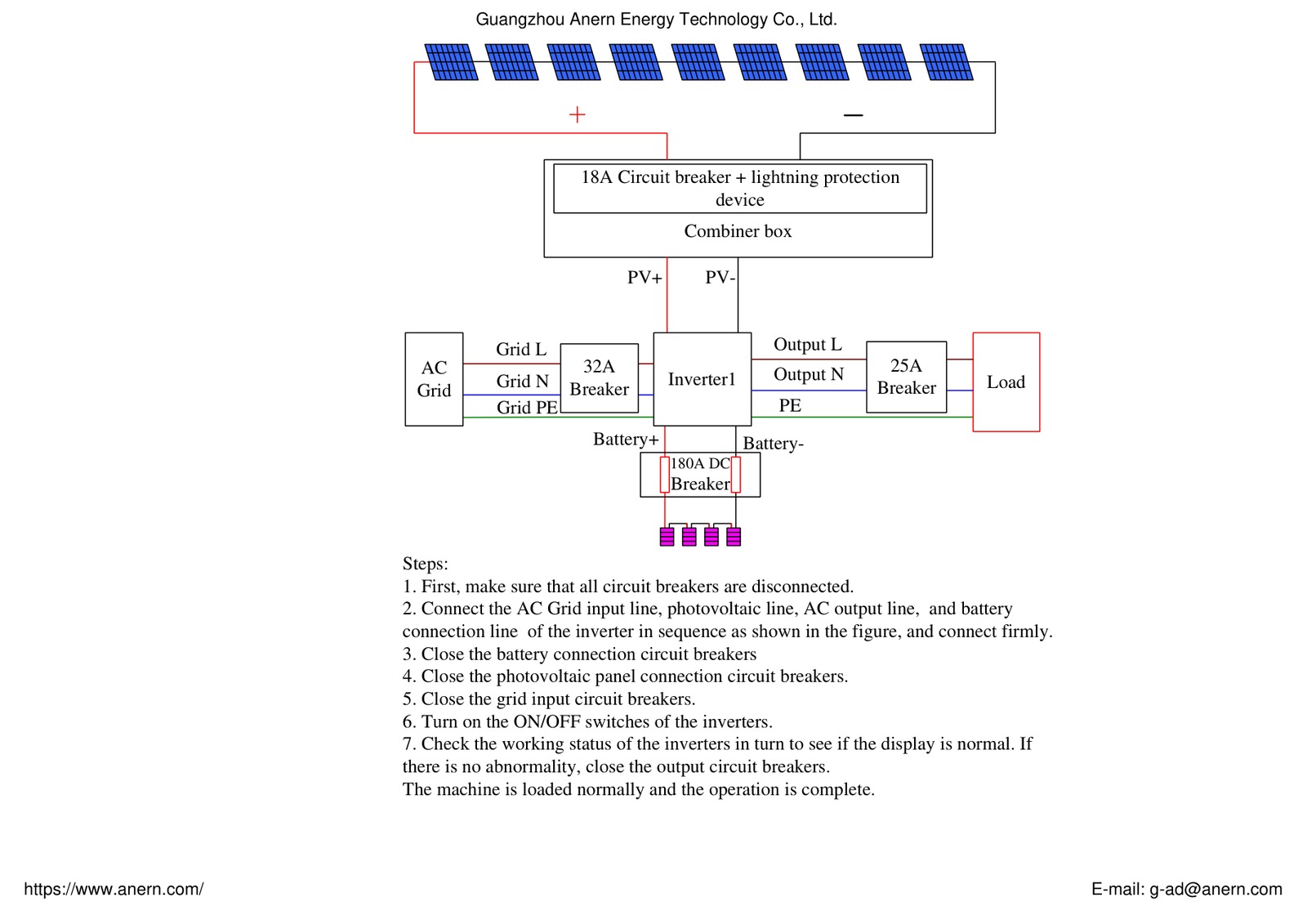

Figure 3. Single inverter wiring diagram with PV, battery, grid, load, and breakers.

fact_check Wiring Checklist

check_circle Verify DC voltage of PV strings matches range.
check_circle Connect battery using recommended cable size.
check_circle Ensure AC Input is connected to correct L/N ports.
check_circle Route AC Output via safety breakers.

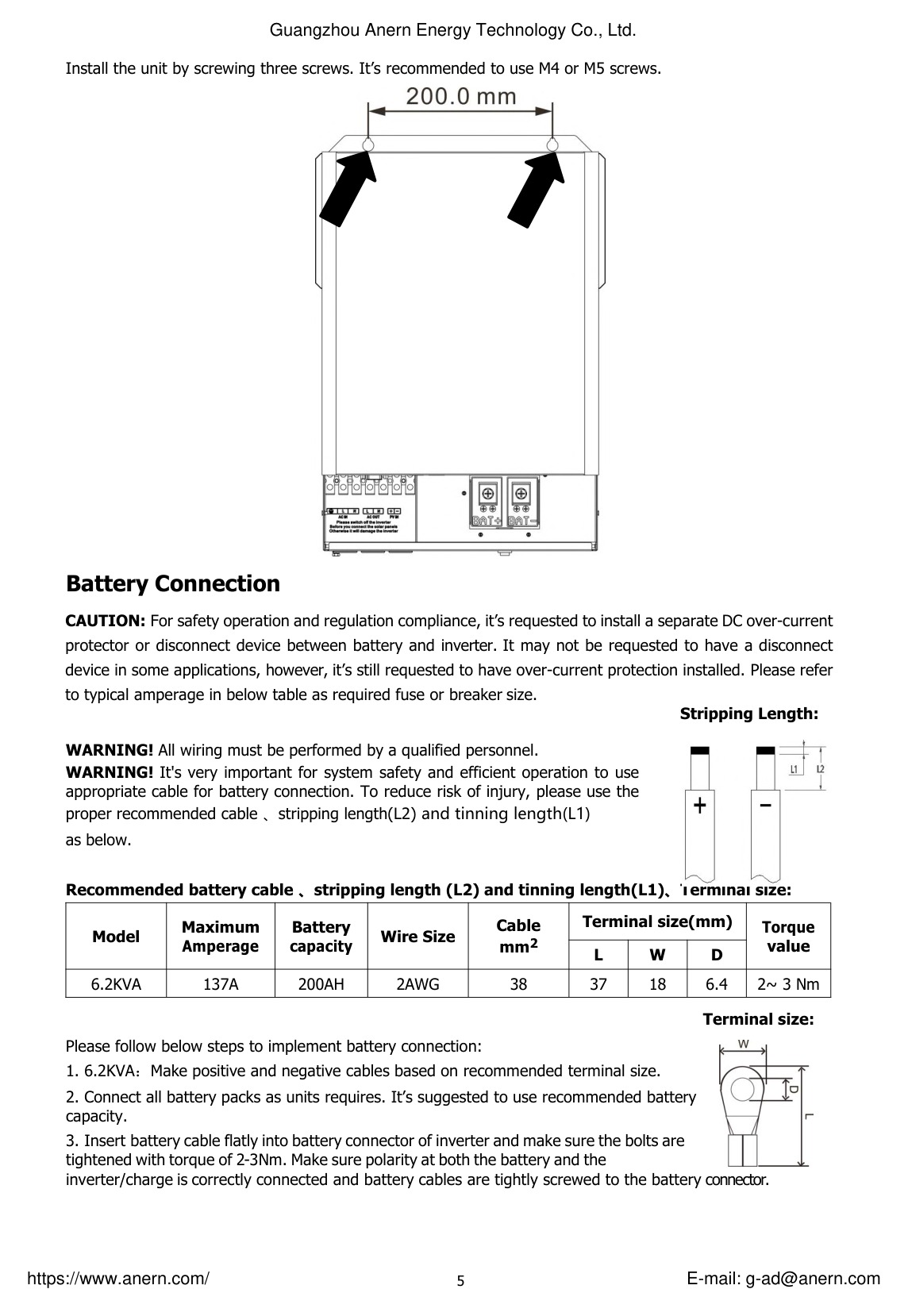

Battery Wiring in a Solar Inverter System

battery_charging_full

Parameter	Requirement
Cable Size	2*35mm² (Min)
DC Breaker	125A / 250A

Battery Wiring in a Solar Inverter System

solar_power

PV Wiring Checklist

• Open Circuit Voltage (Voc) < 500VDC
• Use specialized 4mm² or 6mm² PV cables

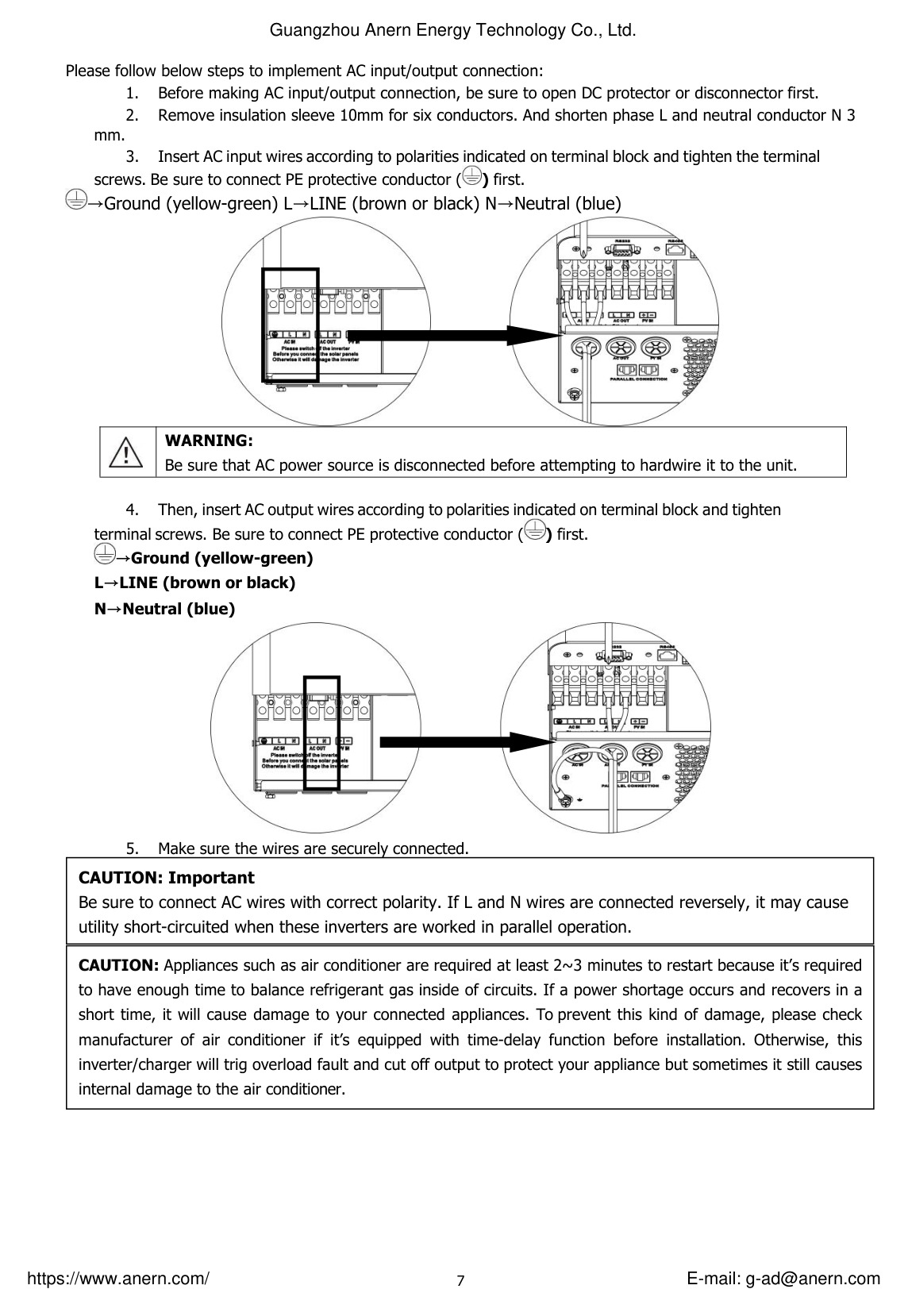

AC Input and AC Output Wiring

The AC connection block provides interface for utility grid input and UPS load output. Precision in phase alignment is critical.

Label

Name

Description

Live

Hot wire (Phase)

Neutral

Return wire

Earth

Ground

error Do not mis-connect AC input and AC output terminals.

Figure 4. AC terminal block wiring for grid and load.

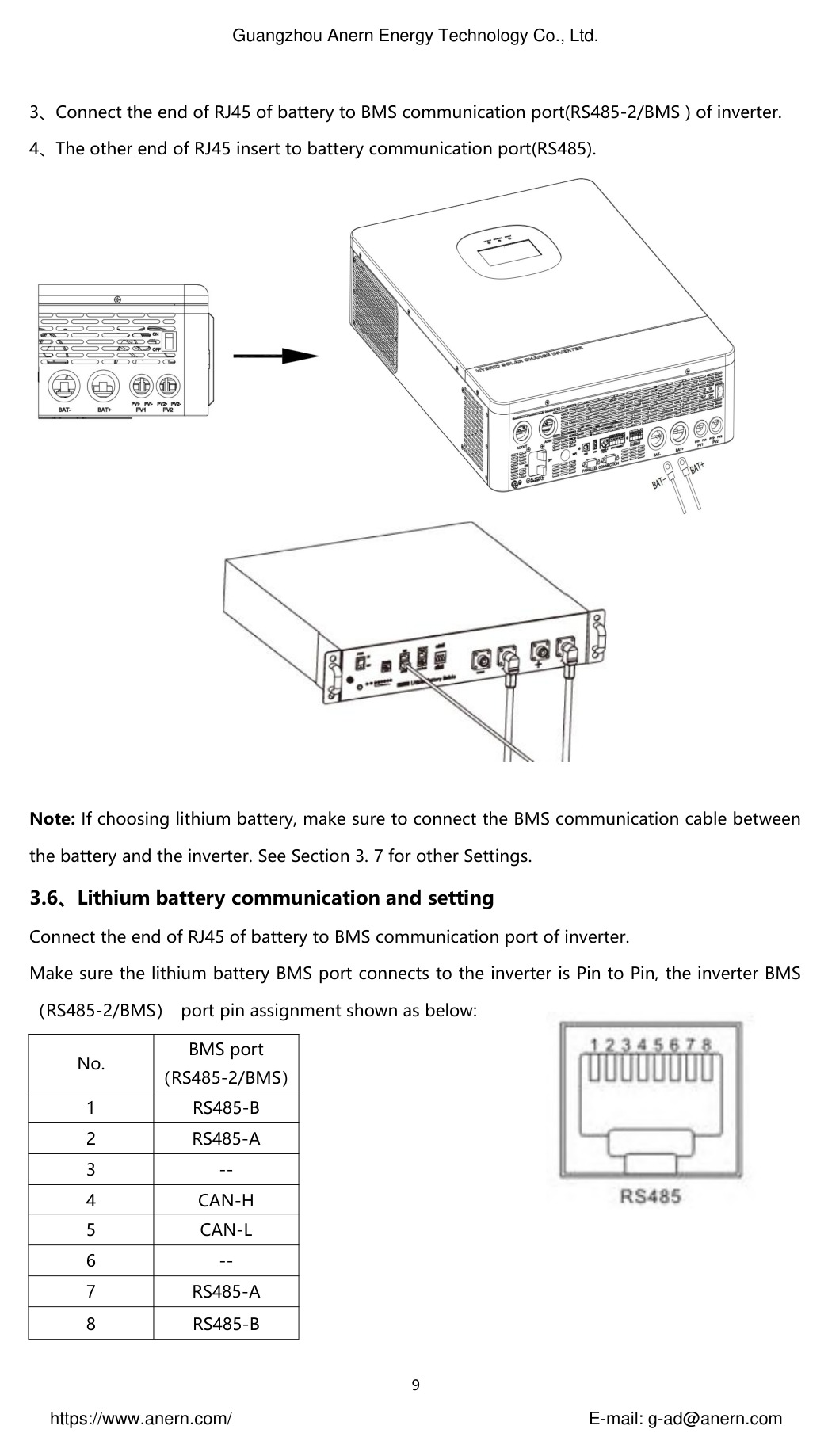

Lithium BMS Communication

Hybrid inverters require real-time data communication with lithium batteries for optimal charging via RS485 or CAN protocol.

Power Cables: DC+ and DC-
Data Cable: RJ45 Protocol

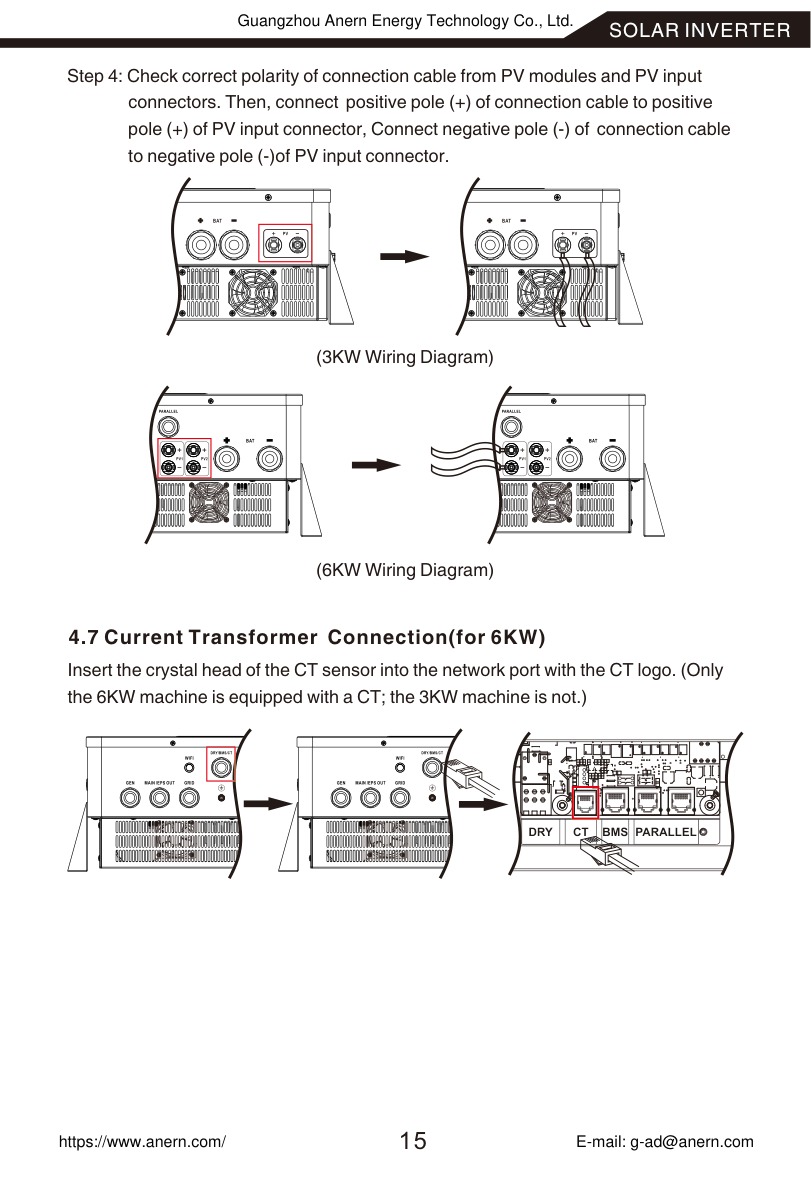

External CT Wiring

The Current Transformer (CT) monitors grid export to enable Zero-Export. Correct orientation is essential.

straight CT arrow should point to the inverter.

Commercial Energy Storage Wiring Diagrams

High-capacity industrial and commercial solar storage configurations.

30kW-60kWh Solar Inverter Wiring Diagram

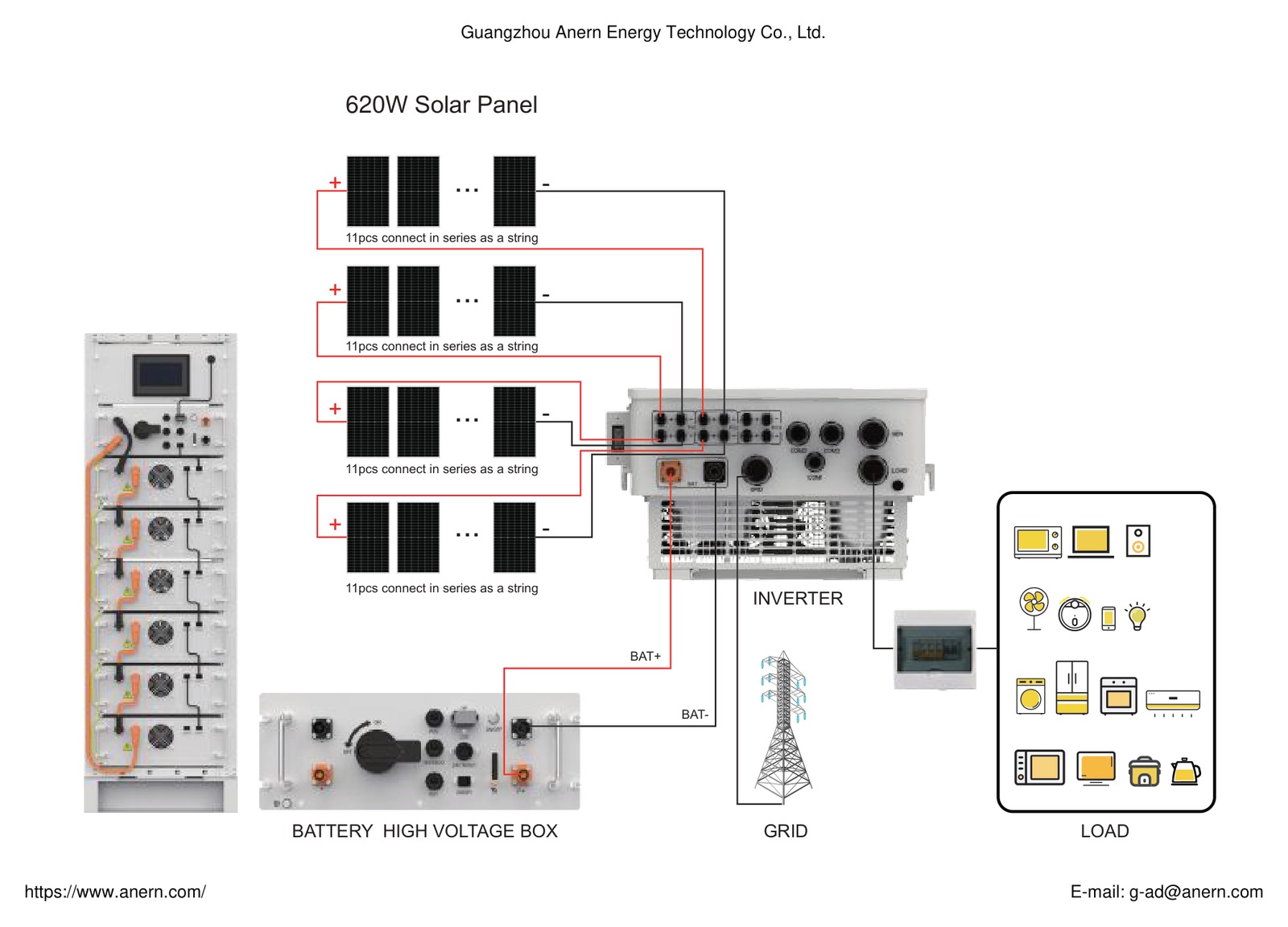

30kW-60kWh system: 620W solar panels, 11 panels connected in series as one string, inverter, high-voltage battery box, grid, and load.

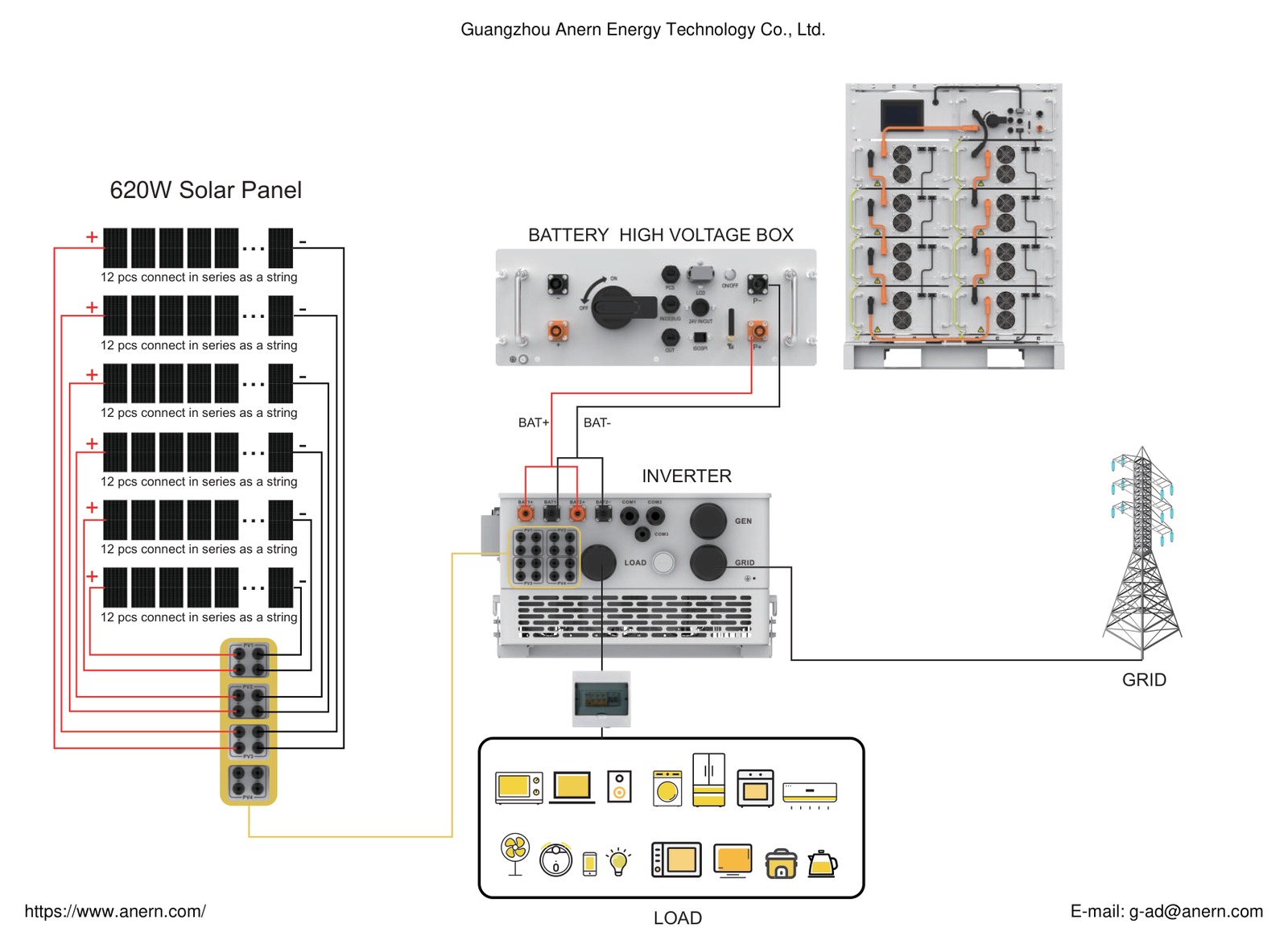

50kW-128kWh Solar Inverter Wiring Diagram

50kW-128kWh system: 620W solar panels, 12 panels connected in series as one string, inverter, high-voltage battery box, grid, and load.

System Comparison Matrix

System	PV String Design	Main Components
30kW-60kWh	11 pcs in series per string	PV, inverter, high-voltage battery box, grid, load
50kW-128kWh	12 pcs in series per string	PV, inverter, high-voltage battery box, grid, load

Three-Phase and Parallel Inverter Wiring

Advanced configurations for high-power three-phase parallel systems.

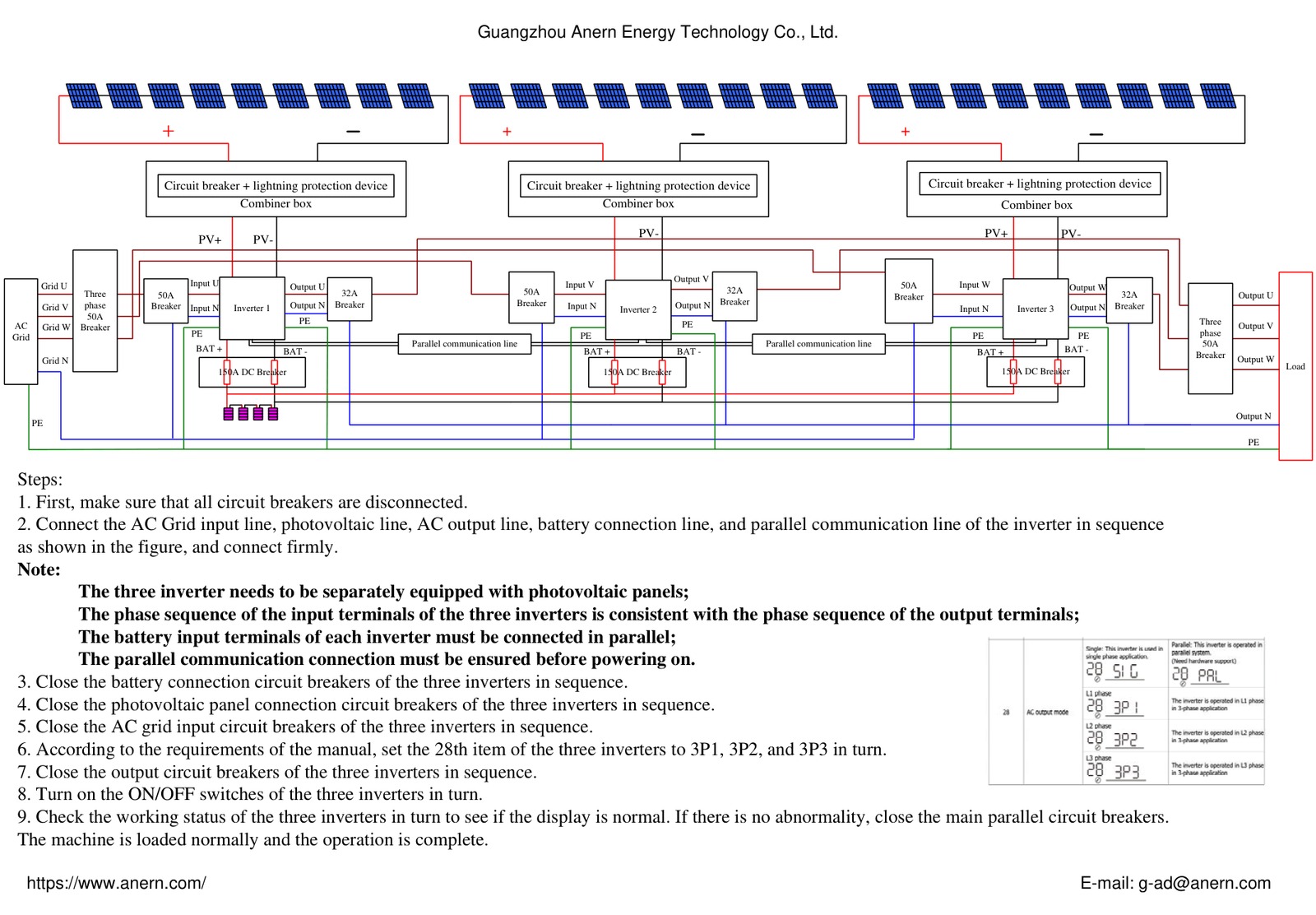

Three-Inverter Three-Phase Parallel System

Each inverter needs separate PV panels.
Input phase sequence and output phase sequence should remain consistent.
Battery input terminals should be connected in parallel.
Parallel communication must be connected before powering on.
Inverter settings should be configured as 3P1, 3P2, and 3P3.

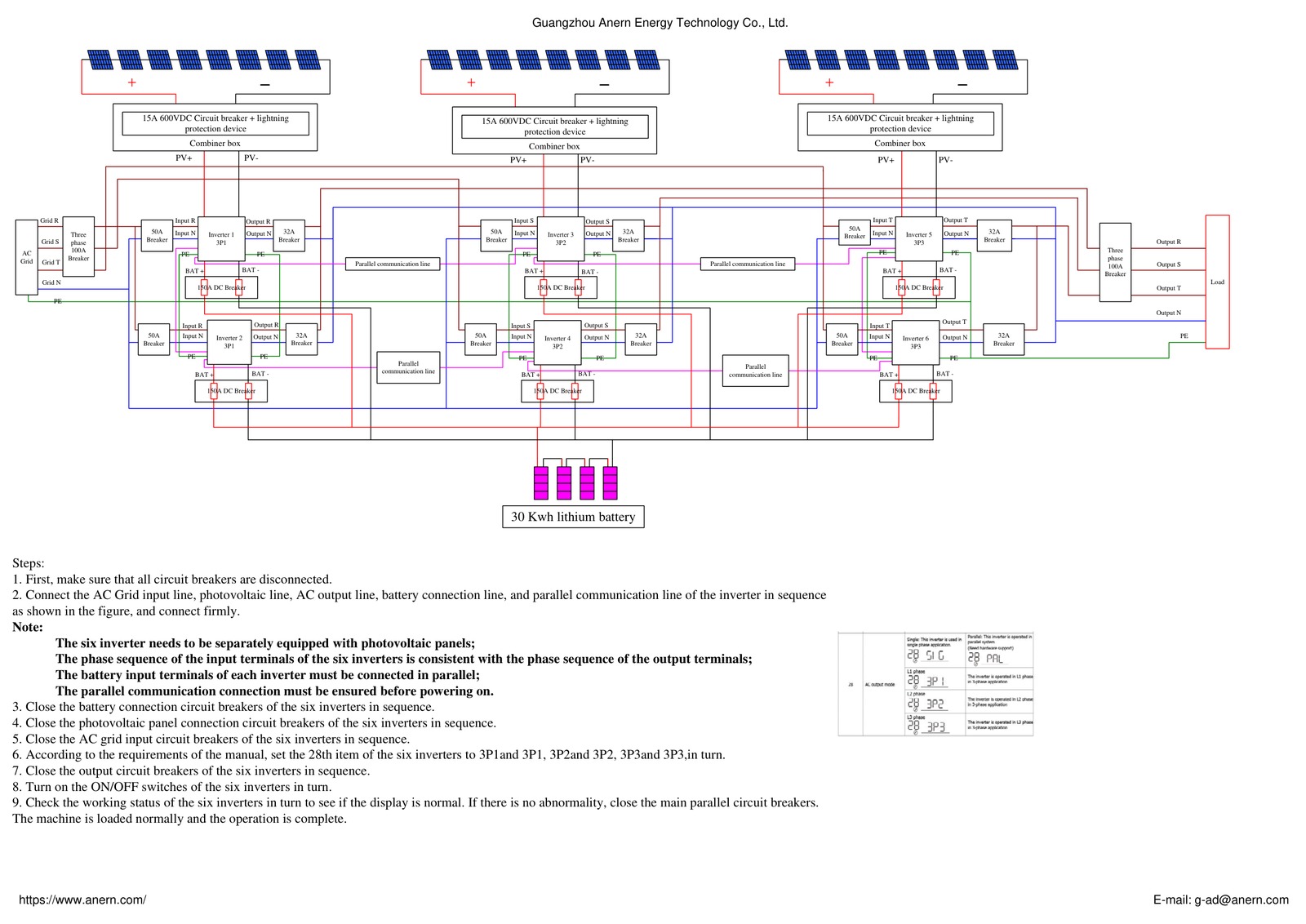

Six-Inverter Three-Phase Paralleling System

Two inverters are assigned to each phase.
Inverter 1 and 2: 3P1
Inverter 3 and 4: 3P2
Inverter 5 and 6: 3P3

Wiring Diagram Checklist

Essential verification steps for a safe and efficient solar installation.

check_circleExact inverter model

check_circleBattery voltage

check_circleBAT+ and BAT- polarity

check_circleDC breaker

check_circlePV open-circuit voltage

check_circleMPPT range

check_circlePV polarity

check_circleAC input/output terminals

check_circlePE grounding

check_circleCT direction

check_circleBMS communication

check_circleParallel communication

check_circleThree-phase setting

check_circleDisplay status before final output

Technical FAQ

What does a solar inverter wiring diagram show?expand_more

It shows how PV modules, batteries, AC input, AC output, grounding, breakers, communication cables and loads are connected to the inverter.

Why is battery wiring important in a solar inverter system?expand_more

Battery wiring affects system safety and inverter operation. The manuals require correct polarity, appropriate cable size and a DC over-current protector or disconnect device between battery and inverter.

What is PV wiring in a solar inverter diagram?expand_more

PV wiring connects solar panels or PV strings to the inverter PV input terminals. The PV positive and negative cables must be connected to the corresponding PV input connectors.

Can AC input and AC output be connected incorrectly?expand_more

No. The manuals warn that input and output terminal blocks should not be mis-connected. AC input and output should follow the terminal labels.

What is the role of CT in the wiring diagram?expand_more

The CT is used to detect current. CT wiring direction should be checked because a wrong direction may trigger a CT wrong direction alarm.

What should be checked before powering on a parallel inverter system?expand_more

The parallel communication line should be connected firmly before powering on. Battery input terminals should be connected in parallel where required, and phase settings such as 3P1, 3P2 and 3P3 should match the three-phase diagram.

Conclusion

A solar inverter wiring diagram should be checked against the exact inverter model and system configuration before installation. For simple systems, the diagram may show PV, battery, AC input, AC output and load. For larger systems, it may also include high-voltage battery boxes, CT sensors, BMS communication, parallel communication lines and three-phase wiring.

The safest approach is to follow the corresponding Anern wiring diagram and user manual, confirm all breakers are disconnected before wiring, verify polarity and grounding, and only power on after all wiring and communication connections are firm.
