Anern, with 16 years of experience in the energy industry, from solar systems to solar accessories, from indoor LED lighting to outdoor solar lighting, we are one of the sources to meet your diverse needs.
Anern has 16 years of experience in solar lighting and solar product manufacturing. Anern is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.
The AN-FGI-DU4200 inverter is a new off-grid inverter launched by Anern. The biggest feature of this inverter is that it can realize the automatic switching function of 12V and 24V battery voltage. The inverter can automatically adjust the rated output power according to the voltage of the battery connected by the user. It is also the industry's first off-grid inverter that can achieve dual-purposes. In addition, the inverter also supports the connection of mains and generators, and has functions such as automatic restart, overload/overtemperature/short circuit protection, etc.
| Battery Voltage | 12V | 24V |
| Rated output power | 2300VA/2300W | 4200VA/4200W |
| Voltage | 230VAC | 230VAC |
| Floating Charge Voltage | 13.5V | 27V |
| Overcharge Protection | 16VDC | 32VDC |
| Maximum Charge Current | 100A | 100A |
| Maximum PV Array Power | 400W | 400W |
| MPPT Range @ Operating Voltage | 55~500VDC | 55~500VDC |
| Maximum Charge Current | 100A | 100A |
| Dimension. H*W*D (mm) | 405*305*108 | 405*305*108 |
| Net Weight (kgs) | 6.7 | 6.7 |

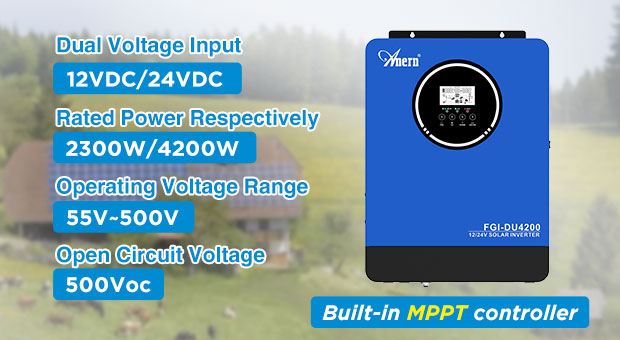

Compatible with 12VDC/24VDC dual voltage input, providing 2300W/4200W rated power respectively, accurately matching different load requirements
Built-in MPPT controller, supports 55V~500V wide operating voltage range, 500Voc open circuit voltage, and improves solar energy conversion efficiency.

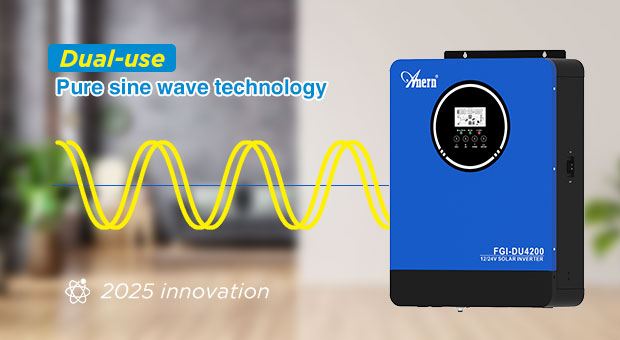

The first pure sine wave dual-use function, stable output power quality, perfectly adapted to precision equipment.

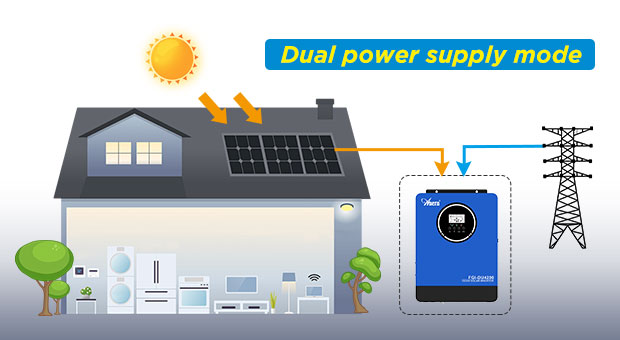

The dual power supply modes of solar energy and power grid work together seamlessly, and the AC input is compatible with mains power and generators to ensure the continuity of power supply.

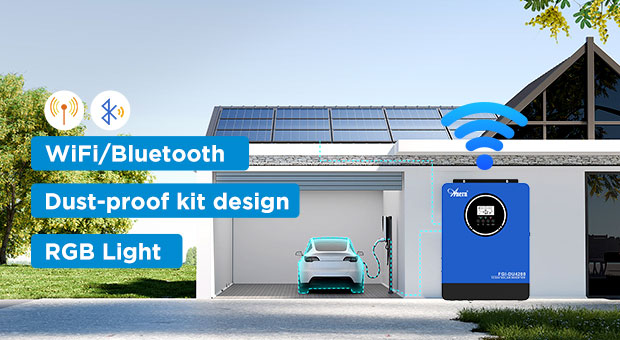

Supports WiFi remote monitoring + Bluetooth near-end sampling (optional), with RGB light status prompt;
Dust-proof kit design, no fear of using in harsh environments.

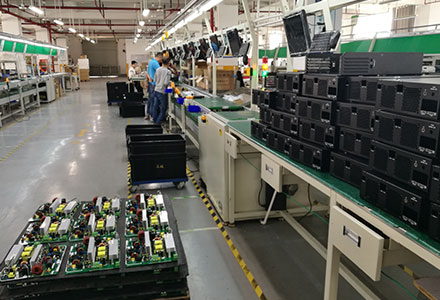

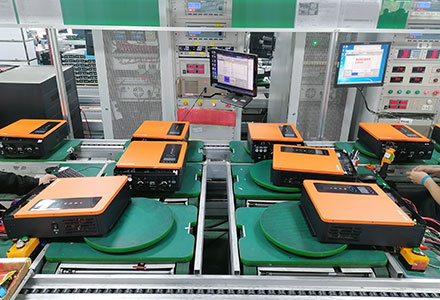

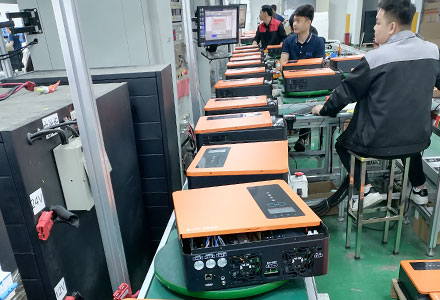

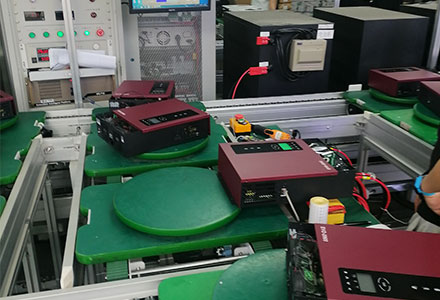

Anern has a professional automated factory and has introduced advanced automated production equipment. All of our off-grid hybrid inverters have passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Aneng has a professional R & D team to tailor exclusive solar solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
