An MPPT inverter (Maximum Power Point Tracking inverter) is a type of solar inverter that continuously adjusts operating conditions to extract the maximum possible power from solar panels. Unlike conventional inverters, it doesn’t simply convert DC to AC—it actively “hunts” for the optimal operating point where your solar array performs at its peak.
At a glance, that might sound like a minor optimization. But in real-world solar systems—where sunlight fluctuates, temperatures shift, and loads vary—this capability can significantly increase energy yield. So the real question is not what an MPPT inverter is, but why it makes such a difference in actual deployments.
Solar panels don’t produce constant power. Their output is inherently variable and influenced by multiple environmental and electrical factors, including sunlight intensity, ambient temperature, and load conditions. As a result, the voltage and current generated by a panel are always shifting.

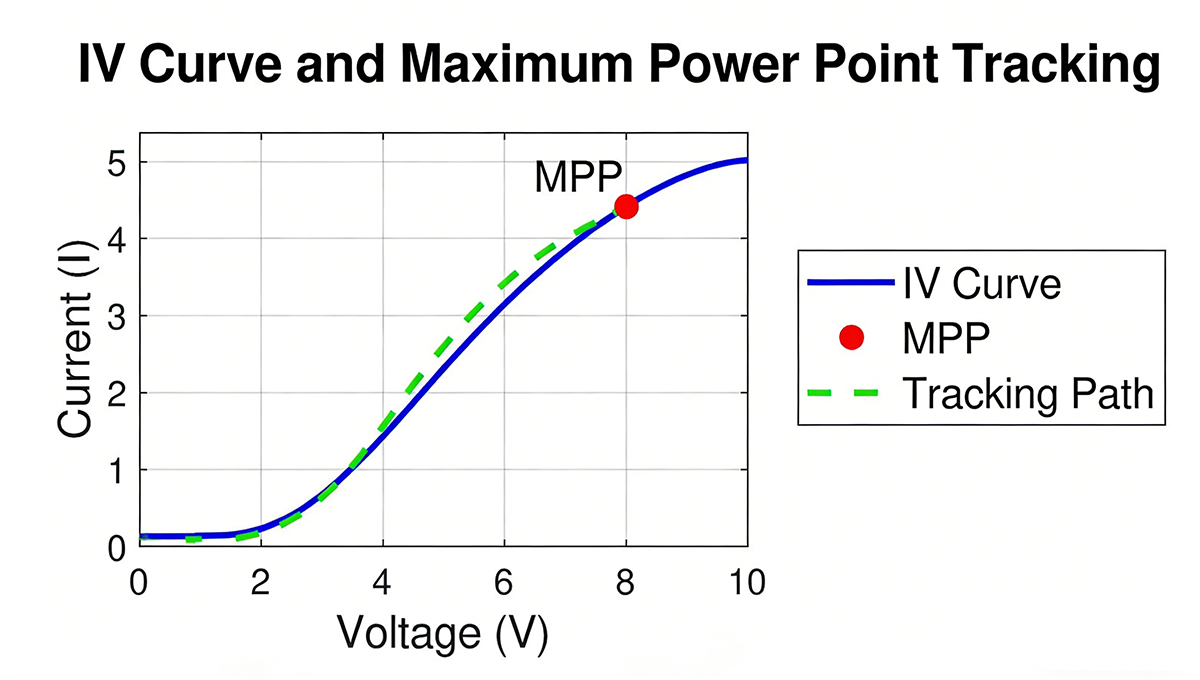

At any given moment, there exists a specific combination of voltage and current where the panel delivers its highest possible power output. This is known as the Maximum Power Point (MPP)—essentially the “sweet spot” of performance.
An MPPT inverter continuously tracks this point in real time. Instead of operating at a fixed voltage like traditional systems, it dynamically adapts to ensure that the solar panels are always working as efficiently as possible. Think of it as a smart optimizer that refuses to settle for “good enough” when “maximum output” is achievable.
The working principle behind MPPT is grounded in a simple but powerful electrical relationship:
P=V×IP = V \times IP=V×I
Where power (P) is the product of voltage (V) and current (I). The challenge is that increasing voltage may decrease current, and vice versa. So how do you find the optimal balance?
An MPPT inverter solves this by continuously adjusting voltage and current, testing different operating points, and identifying where the product of the two—power—is maximized. This process is not static; it occurs thousands of times per second through sophisticated algorithms such as Perturb & Observe or Incremental Conductance.
In practical terms, the inverter is constantly asking: “Can I get more power if I slightly tweak the voltage?” If the answer is yes, it keeps adjusting in that direction. If not, it shifts course. This rapid feedback loop ensures that even under changing weather conditions—like passing clouds or rising temperatures—the system maintains optimal performance.
When evaluating solar technologies, one of the most common comparisons is between MPPT and PWM (Pulse Width Modulation). While both are used in solar charge control, their efficiency and functionality differ significantly—especially in larger or more complex systems.
Below is a high-quality comparison table to clearly illustrate the differences:
| Feature | MPPT Inverter | PWM Controller |
| Efficiency | 95%–99% (very high) | 70%–85% (moderate) |
| Operating Principle | Tracks maximum power point dynamically | Operates at fixed voltage |
| Energy Harvest | Maximizes power output from panels | Loses excess potential power |
| System Compatibility | Suitable for high-voltage systems | Limited to smaller systems |
| Performance in Low Light | Excellent | Poor |
| Cost | Higher upfront cost | Lower cost |
| Scalability | Highly scalable | Limited scalability |
| ROI Over Time | Higher due to efficiency gains | Lower due to energy loss |
What does this mean in practice? If you’re running a residential or commercial solar installation where efficiency directly impacts ROI, choosing PWM over MPPT could mean leaving a significant amount of energy—and money—on the table. The upfront savings may look attractive, but the long-term trade-off often isn’t worth it.
If you're also evaluating inverter architectures beyond MPPT, such as frequency-based design differences, you may want to explore this detailed guide on low frequency vs conventional inverters.

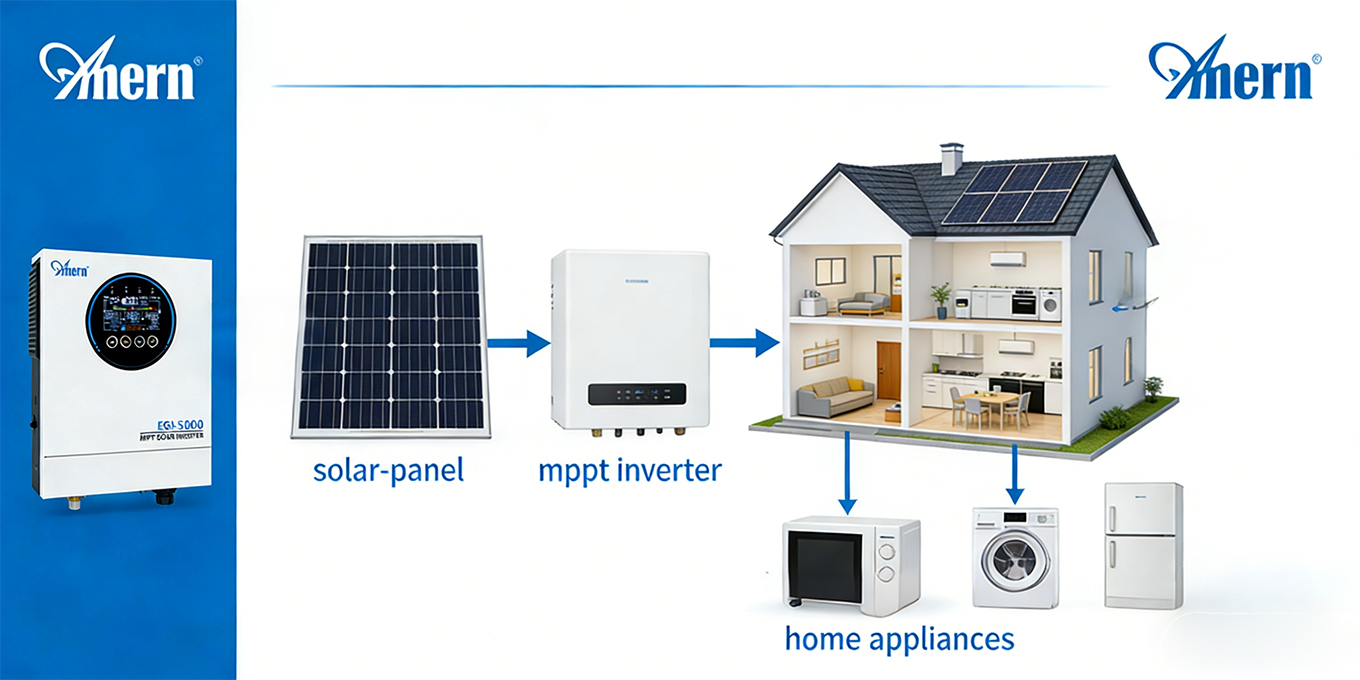

Connecting an MPPT charge controller to an inverter is a relatively straightforward process, but it requires a clear understanding of system architecture. Typically, the solar panels are first connected to the MPPT charge controller, which regulates the DC power and optimizes output. This power is then stored in batteries (in off-grid or hybrid systems) before being fed into the inverter, which converts it into usable AC electricity.
The key is ensuring compatibility between voltage levels, battery capacity, and inverter specifications. Improper configuration can lead to inefficiencies or even system damage.
For a more comprehensive understanding of how MPPT integrates within complete solar systems, including battery storage and hybrid configurations, you can refer to our in-depth guide on how a hybrid inverter works.

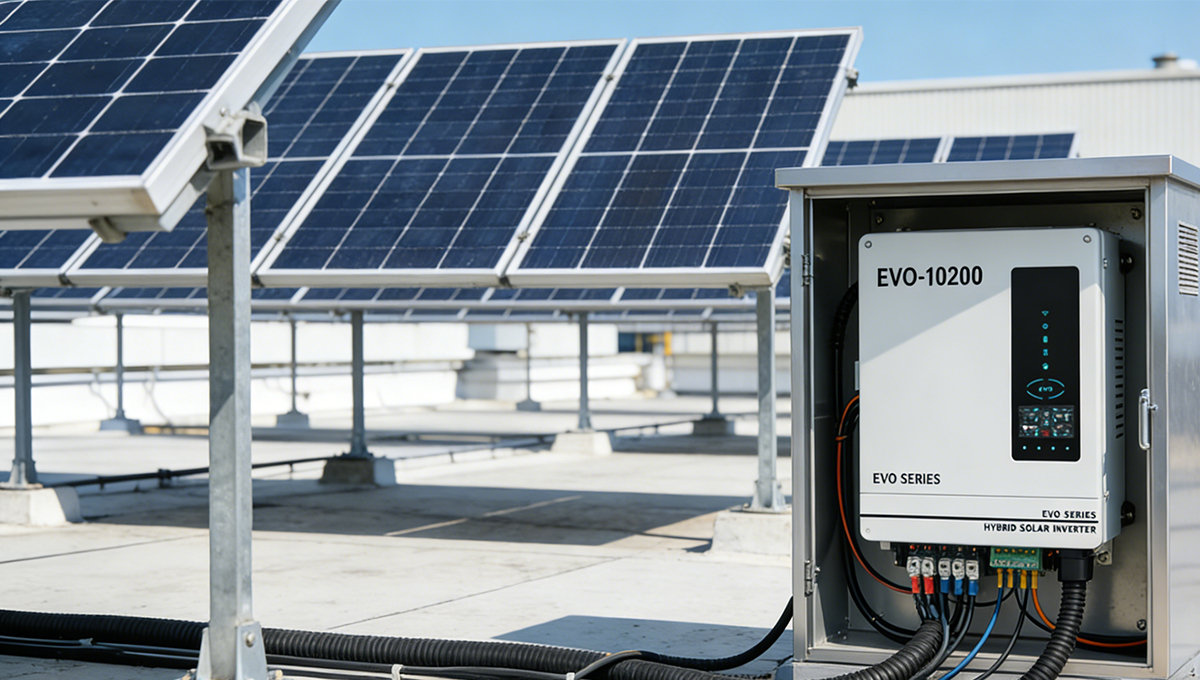

In real-world solar deployments, MPPT inverters do far more than just optimize power output—they act as the central intelligence layer of the system. This is especially evident in advanced systems such as hybrid inverter low frequency solutions, where stability, surge capacity, and intelligent energy management are critical for both grid-tied and off-grid scenarios. One of their primary functions is maximizing energy harvest under fluctuating environmental conditions. Whether it’s partial shading, temperature variation, or inconsistent sunlight, the inverter ensures that performance remains as close to optimal as possible.
Another critical function is voltage regulation. Solar panels often produce voltages that exceed what batteries or loads can safely handle. MPPT inverters step this voltage down efficiently while preserving power, which is particularly important in off-grid and hybrid systems.
They also enable system flexibility. For example, in large-scale installations, multiple strings of panels can operate at different voltages and still be optimized independently through MPPT channels. This is especially useful in complex rooftops or industrial environments where uniform panel orientation isn’t always possible.
Additionally, modern MPPT inverters often integrate with energy management systems, enabling real-time monitoring, remote diagnostics, and even predictive maintenance. This transforms the inverter from a passive device into an active control hub within the solar ecosystem.

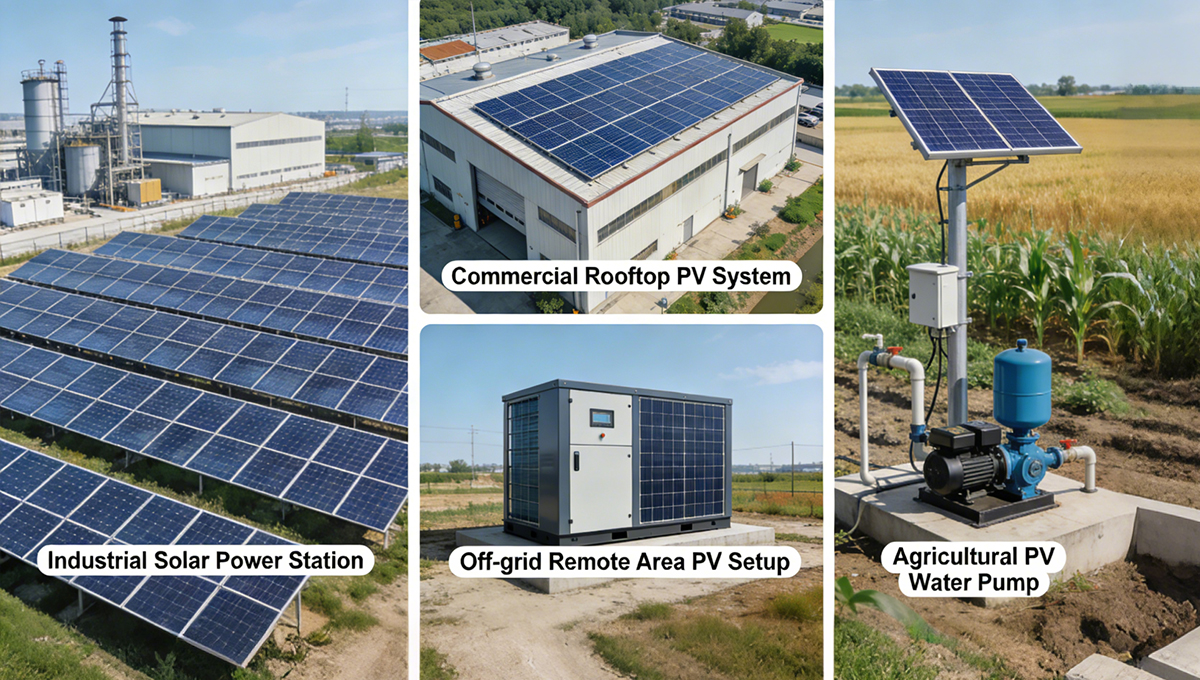

MPPT inverters are widely deployed across a range of applications, each benefiting from their ability to maximize efficiency and adaptability.
In industrial solar power systems, where energy demand is high and operational efficiency directly impacts profitability, MPPT technology ensures that every watt generated is utilized effectively. Large manufacturing facilities, for instance, rely on stable and optimized power output to maintain continuous operations.
Commercial rooftops are another major application area. Buildings with complex layouts or partial shading conditions benefit greatly from MPPT’s dynamic tracking capabilities. Instead of suffering performance losses due to suboptimal panel positioning, these systems maintain high efficiency throughout the day.
Off-grid energy systems perhaps gain the most from MPPT inverters. In these scenarios, combining MPPT technology with a low frequency hybrid inverter allows for better handling of heavy loads, higher surge tolerance, and more stable long-term operation in remote environments. In remote locations where energy resources are limited and reliability is critical, maximizing solar output is not just beneficial—it’s essential. Whether it’s a rural electrification project or a standalone cabin, MPPT ensures consistent energy availability.
Agricultural solar pumps also rely heavily on MPPT technology. Water pumping requirements vary throughout the day, and solar conditions are rarely constant. MPPT inverters allow these systems to operate efficiently even under changing sunlight conditions, ensuring reliable irrigation.
Finally, in energy storage and hybrid systems, MPPT inverters play a crucial role in balancing power generation, storage, and consumption. They ensure that batteries are charged efficiently while also supplying stable power to loads or the grid.
Investing in an MPPT solar inverter is not just a technical upgrade—it’s a strategic decision. While the initial cost may be higher compared to simpler alternatives, the long-term benefits often far outweigh the upfront expense. In fact, this decision becomes even more compelling when viewed against the backdrop of rapid global solar expansion and increasing demand for high-efficiency energy systems.
According to the International Energy Agency, solar power is now the fastest-growing source of electricity worldwide, and renewables are expected to account for over 90% of global electricity demand growth between 2025 and 2030 . This means that efficiency is no longer optional—it is central to competitiveness in modern energy systems.
First, there is the undeniable advantage of higher energy yield. Over the lifespan of a solar system, even a 10–20% increase in efficiency can translate into substantial financial returns. This is particularly relevant for commercial and industrial users where energy consumption is significant. As global solar deployment accelerates, the value of every additional kilowatt-hour becomes more pronounced. In 2025 alone, global solar installations surged dramatically, with hundreds of gigawatts of new capacity being added within a single year, reflecting the scale at which efficiency improvements can compound financial returns .
Moreover, technological advancements continue to push efficiency boundaries. For example, next-generation solar modules have already achieved conversion efficiencies above 25% in laboratory conditions, setting new industry benchmarks . As Martin Green from the University of New South Wales noted:
“High-efficiency technologies may start at a higher cost, but their prices tend to fall rapidly with industry adoption.”
This trend reinforces a critical point: investing in efficiency-driven components like MPPT inverters aligns with the broader trajectory of the solar industry.
Second, MPPT inverters offer greater system flexibility and scalability. Second, MPPT inverters offer greater system flexibility and scalability. This becomes even more valuable in systems designed with off grid inverter parallel configurations, where multiple units can be connected to expand capacity without compromising efficiency or system stability. As energy needs grow or system configurations change, MPPT-based setups can adapt more easily without requiring complete redesigns. This flexibility is increasingly important in a market where solar investment is scaling rapidly. The global solar sector attracted approximately $450 billion in investment in 2025, making it the largest area of energy investment worldwide . In such a capital-intensive environment, systems that can scale efficiently without costly retrofits offer a clear economic advantage.
Third, they enhance system reliability. By continuously optimizing performance and preventing inefficient operating conditions, MPPT inverters reduce stress on system components, potentially extending their lifespan. This is particularly critical as solar becomes a core part of national energy infrastructure. In the United States alone, solar power generated approximately 388.8 TWh of electricity in 2025, demonstrating its growing role in maintaining grid stability and energy supply . With systems operating at such scale, reliability is no longer a secondary concern—it is fundamental.
And perhaps most importantly, they future-proof your investment. The global energy system is undergoing a structural shift toward renewables, with solar at the center of this transition. Forecasts indicate that renewable energy will supply up to 43% of global electricity by 2030, nearly doubling its share within a decade . At the same time, the market for ultra-efficient solar technologies is projected to grow rapidly, reaching $28.5 billion in 2026 with a CAGR of over 15% .
What does this mean for decision-makers? It means that systems built today must be optimized not just for current performance, but for future energy landscapes defined by higher efficiency standards, smarter grids, and more dynamic demand patterns.
In this context, choosing an MPPT inverter is not simply about improving performance—it is about aligning with where the entire industry is heading. When efficiency, scalability, and long-term ROI are all considered together, the real question becomes: can a modern solar system afford to operate without intelligent optimization?
So the real question becomes: Can you afford not to use MPPT technology in a modern solar installation? Now click for solar inverter wholesale！
References：
International Energy Agency (IEA). Renewables 2025: Renewable Electricity Forecast. Available at: https://www.iea.org/reports/renewables-2025/renewable-electricity
Reuters. (2025). Trina Solar sets world record in solar technology efficiency. Available at: https://www.reuters.com/business/energy/trina-solar-sets-world-record-solar-technology-2025-01-06/
Times of India. (2025). Global solar installations surge with significant capacity growth in 2025. Available at: https://timesofindia.indiatimes.com/city/ludhiana/global-solar-installations-surge-64-in-first-half-of-2025-world-installed-380-gw-of-new-solar-capacity-in-first-six-months-of-2025/articleshow/123651023.cms
Hanwha Group. (2025). IEA World Energy Investment Report 2025: Global capital trends in energy. Available at: https://www.hanwha.com/newsroom/news/feature-stories/iea-world-energy-investment-report-2025-where-is-global-capital-flowing.do
Wikipedia contributors. (2026). Solar power in the United States. Available at: https://en.wikipedia.org/wiki/Solar_power_in_the_United_States
The Business Research Company. (2026). Ultra-efficient solar power global market report. Available at: https://cn.gii.tw/report/tbrc1924363-ultra-efficient-solar-power-global-market-report.html
Is an MPPT inverter necessary for all solar systems?
Not necessarily, but for most medium to large systems, it is highly recommended. Smaller systems with minimal power demands may use PWM controllers, but they sacrifice efficiency.
How much more efficient is MPPT compared to PWM?
Typically, MPPT systems are 15%–30% more efficient, depending on environmental conditions and system design.
Can MPPT inverters work in cloudy weather?
Yes, and this is where they truly shine. They continuously adjust to extract the maximum available power even under low-light conditions.
Are MPPT inverters compatible with battery storage systems?
Absolutely. In fact, they are commonly used in hybrid and off-grid systems where battery integration is essential.
Do MPPT inverters require maintenance?
They generally require minimal maintenance, but regular system checks and monitoring are recommended to ensure optimal performance.
