We have cooperated with more than 200 countries in solar energy projects and road lighting projects. We have exported products to many countries and participated in many important government projects around the world.
We have cooperated with more than 200 countries in solar energy projects and road lighting projects. We have exported products to many countries and participated in many important government projects around the world.
Anern has 17 years of experience in solar lighting and solar product manufacturing. Anern is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.
The AN-LFP-A is a battery that uses lithium iron phosphate (LiFePO4) as the positive electrode material and lithium-carbon as the negative electrode material. This battery boasts numerous advantages, including high energy density, long cycle life, excellent safety performance, and low self-discharge rate. We use brand-new Grade A lithium iron phosphate cells, exhibiting extremely high consistency, with a standard cycle life exceeding 6000 cycles; in comparison, traditional lead-acid batteries have a cycle life of only about 350 cycles. This product features a built-in intelligent BMS (Battery Management System) providing multiple safety safeguards. The design incorporates studded output terminals for easy user connection. It supports continuous input and output currents up to 300A.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Model | AN-LFP12100A | AN-LFP12200A | AN-LFP12300A |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Typical Capacity (AH) | 100AH | 200AH | 300AH |
| Typical Voltage (V) | 12.8V | 12.8V | 12.8V |
| Energy storage (Kwh) | 1280WH | 2560WH | 2560WH |
| Voltage Working Range (V) | 10-14.6V | 10-14.6V | 10-14.6V |
| Working Temperature (°C) | Charge: 0-+55°C Discharge: -20-+60°C | Charge: 0-+55°C Discharge: -20-+60°C | Charge: 0-+55°C Discharge: -20-+60°C |
| Max. Charge Current (A) | 50A | 100A | 150A |
| Max. Discharge Current (A) | 100A | 150A | 150A |
| Dimension (mm) | 318*184*196mm | 302*214*258mm | 379*218*262mm |
| IP Grade | IP54 | IP54 | IP54 |
| Certifications | CE,UN38.3, MSDS | CE,UN38.3, MSDS | CE,UN38.3, MSDS |
Battery Type: LiFePO4
Typical Capacity (AH): 50AH
Typical Voltage (V): 12.8V
Energy storage (Kwh): 640Kwh
Voltage Working Range (V): 10-14.6V
Max. Charge Current (A): 25A
Max. Discharge Current (A): 50A
The built-in intelligent battery management system (BMS) provides overcharge, over-discharge, overcurrent, short circuit, and temperature protection to ensure the safety and stability of the battery under various operating conditions.

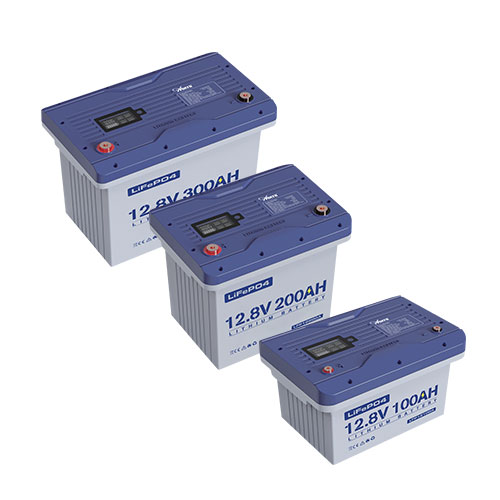

The LFP-A's casing features an LCD display screen, which provides a clear view of the battery's status and information about each battery cell.
It has a long cycle life, using brand-new Grade A cells, with a cycle life of up to 6000 cycles.
Supporting continuous input and output currents of up to 300A, it possesses robust power-handling capabilities, effortlessly meeting the demands for both the instantaneous startup and prolonged, stable operation of high-load equipment.

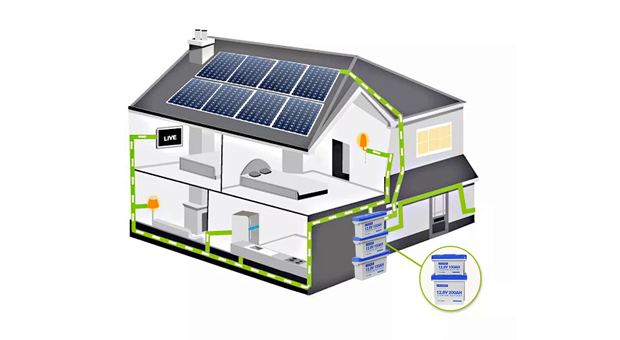

Off-grid systems,hybrid back-up,peak shaving,and virtual power plant home appliances, uninterrupted power supply.
Anern is equipped with a highly specialized automated factory and has introduced cutting-edge automated production equipment, focusing on the production and sales of solar rechargeable lithium batteries. The solar rechargeable lithium batteries we produce have won many international certifications such as CE, ROHS, UN38.3 and MSDS ensuring that the product quality meets international standards. As a leader in the field of solar cell manufacturing in China, Anern has experienced R&D teams dedicated to tailoring unique solar solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
