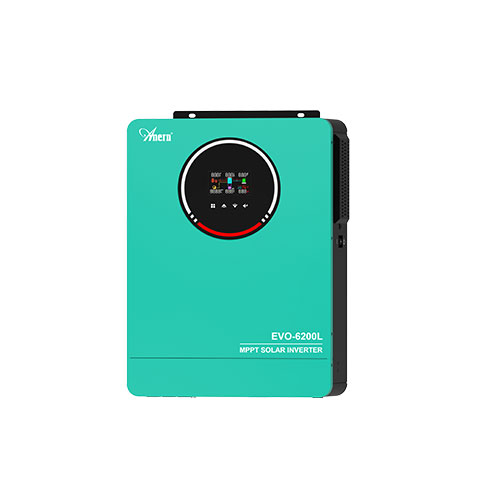

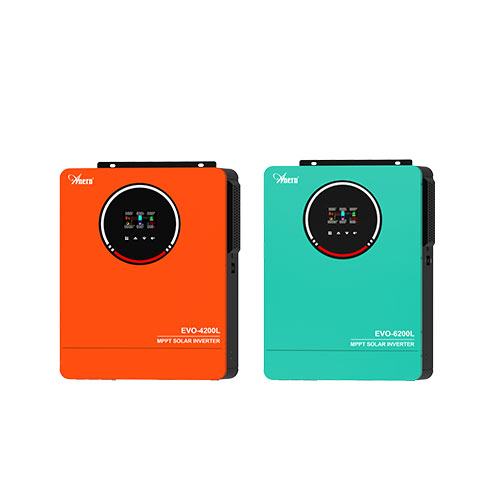

The AN-SCI-EVO4200L / 6200L is a pure sine wave solar inverter designed specifically for off-grid or hybrid solar systems. It features a built-in high-efficiency MPPT solar charge controller (with a maximum charging current of 120A), supports direct operation without a battery, and incorporates advanced functions such as dual AC outputs and intelligent battery charge management. The device offers optional Wi-Fi remote monitoring capabilities, while design elements—including a built-in anti-glare kit and RGB lighting—ensure a balance between adaptability to harsh environments and an enhanced user experience.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Model | EVO-4200L | EVO-6200L |
| Phase | 1-phase in /1-phase out | 1-phase in /1-phase out |
| Maximum PV Input Power | 6200W | 8000W |
| Rated Output Power | 4200W | 6200W |
| MPPT Voltage Range | 60-450Vdc | 60-450Vdc |
| Number of MPPT Trackers /Maximum Input Current | 1/27A | 1/27A |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
| Acceptable Input Voltage Range | 90-280 VAC | 90-280 VAC |
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | 50 Hz/60 Hz(Auto sensing) |
| Nominal DC Voltage | 24Vdc | 48Vdc |
| Maximum Solar Charging Current | 120A | 120A |
| Maximum AC Charging Current | 120A | 120A |
| Maximum Charging Current | 160A | 120A |
| DimensionDxWxH(mm) | 423*344*112 | 423*344*112 |
| Net Weight (kgs) | 7.2kg | 8.2kg |
Features a built-in MPPT solar charge controller with a maximum capacity of 120A, combined with a wide PV input voltage range to maximize solar energy utilization efficiency;
Dual AC Outputs;

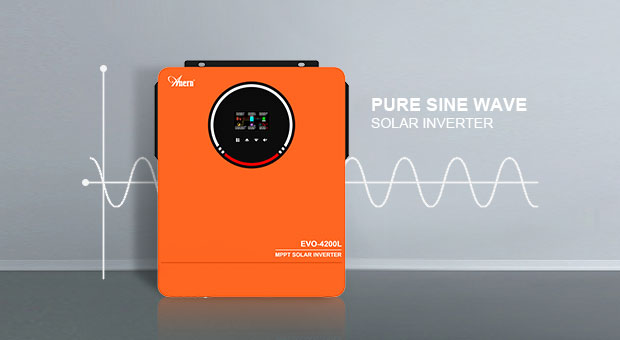

Outputs a stable pure sine wave current, ensuring the safe and efficient operation of various sensitive electronic devices, and offers broad compatibility.
One-touch factory reset;
Short-circuit protection, over-voltage and under-voltage protection, overload protection, and automatic restart upon overheating or short-circuiting.
Certified by ISO9001, CE, RoHS, TUV, and various other standards.
Operates without a battery;

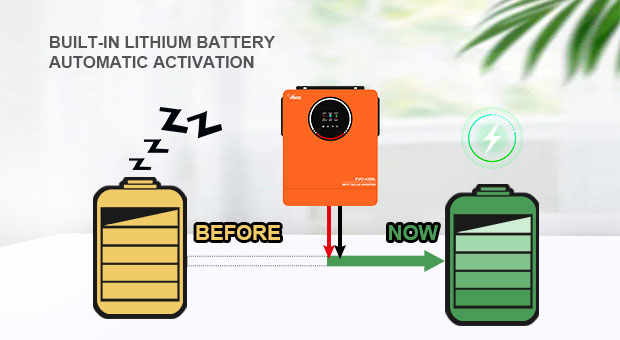

Intelligent battery charging design maximizes battery lifespan.

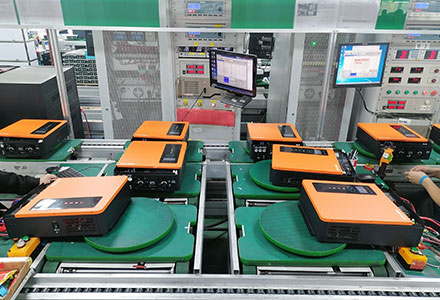

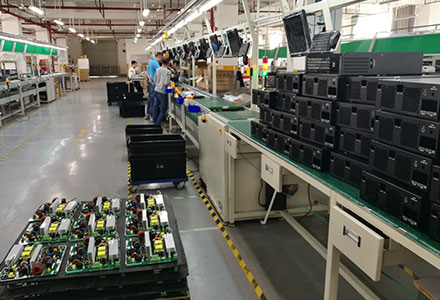

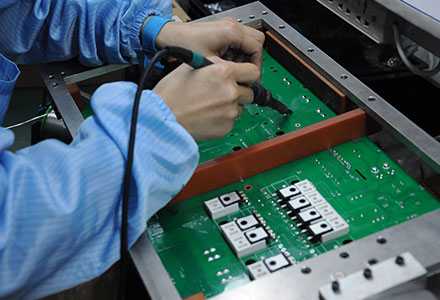

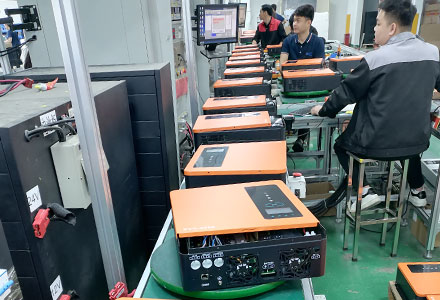

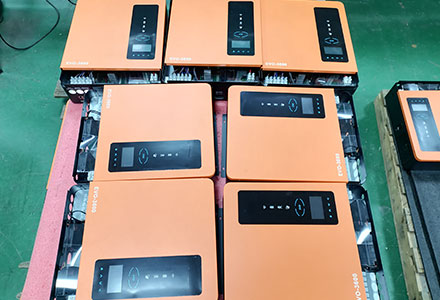

Anern has a professional automated factory and introduces advanced automated production equipment. All of our off grid hybrid inverters have passed ISO9001, CE, ROHS, TUV, and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.

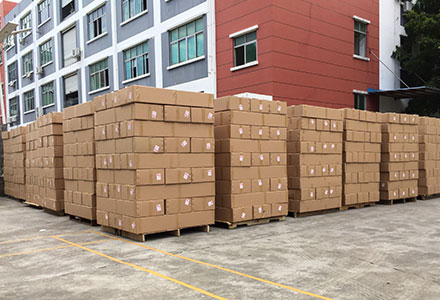

Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
