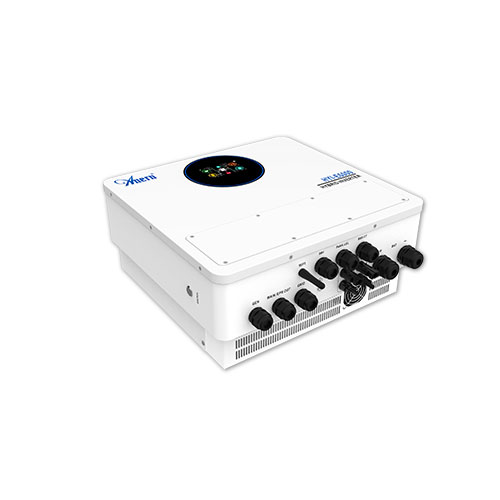

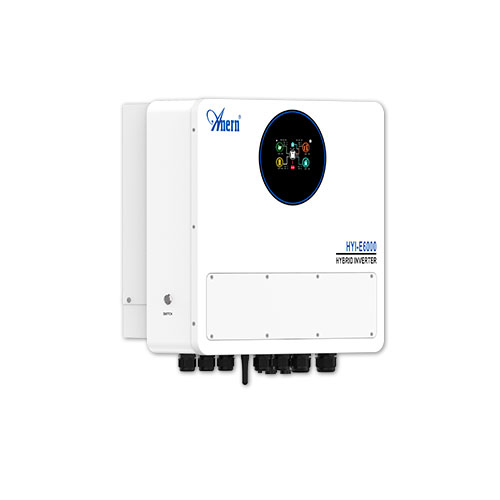

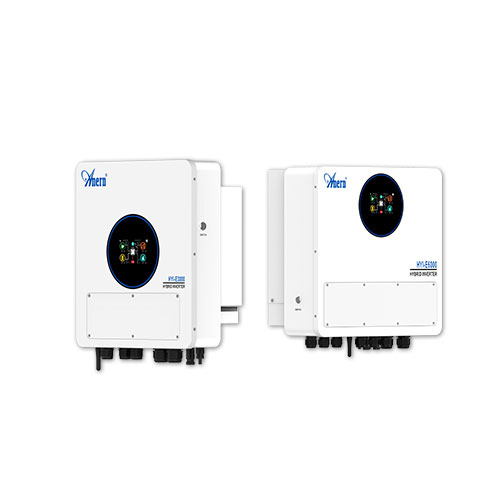

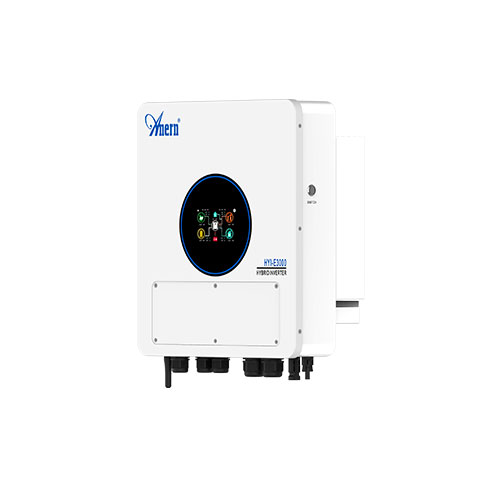

The AN-HYI-E series is an IP65-rated single-phase hybrid solar inverter that supports flexible capacity expansion through parallel multi-unit operation. It features dual independent AC interfaces, a dry contact design, and supports bypass switching between the main power supply and diesel generator, ensuring stable and reliable switching. Built-in WiFi enables remote monitoring and is compatible with lithium battery BMS communication, fully meeting the needs of modern residential and commercial photovoltaic systems.
| Model | AN-HYI-E3000 | AN-HYI-E6000 |
| Phase | 1-phase in /1-phase out | 1-phase in /1-phase out |
| Maximum PV Input Power | 4500W | 9000W |
| Maximum PV Input Voltage | 500Vdc | 500Vdc |
| Rated Output Power | 3000W | 6000W |
| MPPT Voltage Range | 50-450Vdc | 50-450Vdc |
| Number of MPPT Trackers /Maximum Input Current | 1/18A | 2/18A |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
| Acceptable Input Voltage Range | 90-280 VAC | 90-280 VAC |
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | 50 Hz/60 Hz(Auto sensing) |
| Maximum AC Input Current | 16A | 40A |
| Nominal DC Voltage | 24Vdc | 48Vdc |
| Maximum Solar Charging Current | 100A | 135A |
| Maximum AC Charging Current | 100A | 135A |
| DimensionDxWxH(mm) | 451x353x160 | 471x444x200 |
| Net Weight (kg) | 12.3kg | 18.2kg |

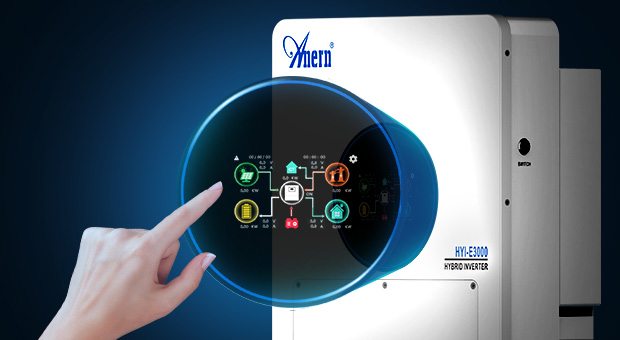

User-friendly Interface: Equipped with a LCD touchscreen, users can view the system's operating status in real time, manually adjust various parameters, and it supports fault diagnosis functions.
Built-in lithium battery BMS communication function, supporting the setting of charging voltage, current and SOC control via inverter

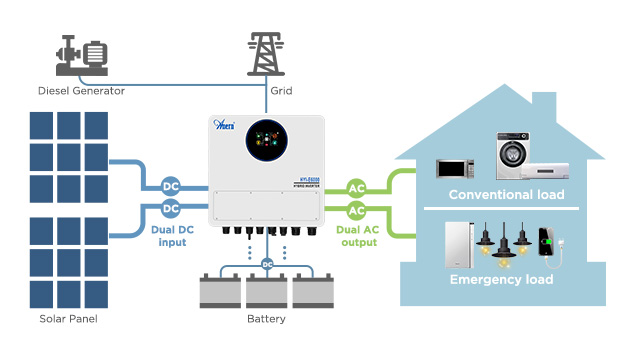

Equipped with dual independent AC input interfaces and dual independent AC output interfaces.
Supports bypass switching between main power supply and diesel generator, adopts dry contact design, with stable and reliable switching.

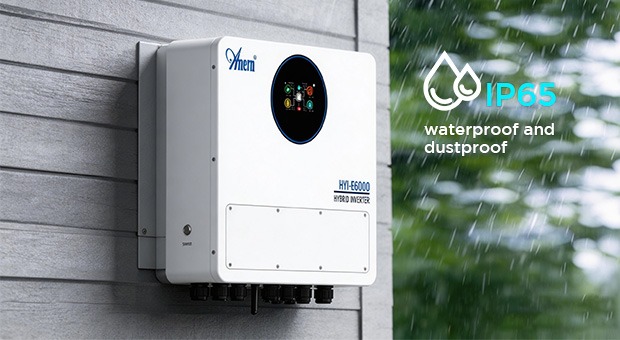

Reach IP65 protection standard, providing comprehensive dust and water protection.
It adopts aluminum heat sink as the main cooling structure, and is equipped with waterproof fan for auxiliary cooling to ensure stable operation of the equipment for a long time, and minimize noise and extend service life.

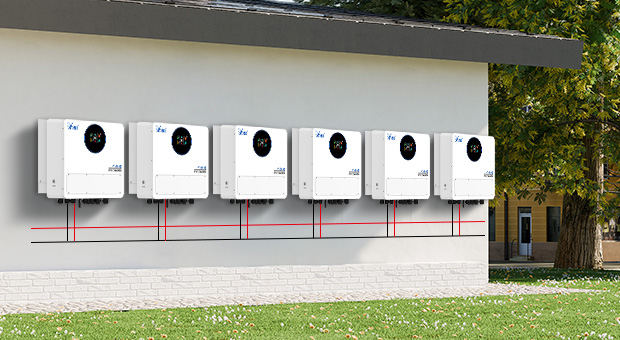

Supports parallel operation of 6 inverters to form a single-phase system for power enhancement, or 3 inverters in parallel to form a three-phase output.
Equipped with a current transformer (CT) for detecting reverse current; the 6K model can adapt to unlimited loads.
Includes a WiFi module, compatible with Android and iOS apps, enabling remote monitoring, parameter setting, and device control.
