Anern, with 16 years of experience in the energy industry, from solar systems to solar accessories, from indoor LED lighting to outdoor solar lighting, we are one of the sources to meet your diverse needs.
Anern has 16 years of experience in solar lighting and solar product manufacturing. Anern is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.

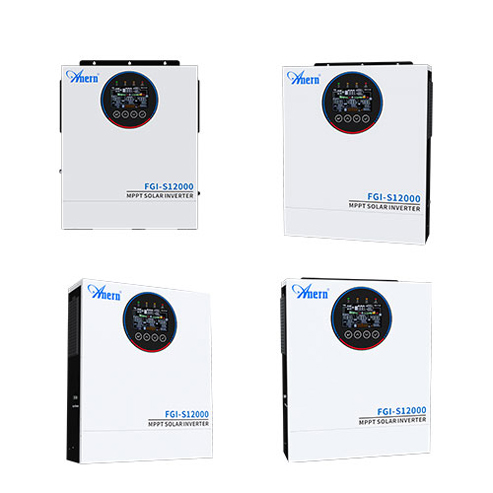

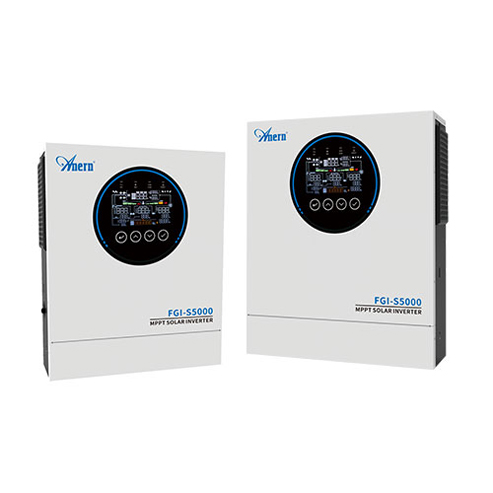

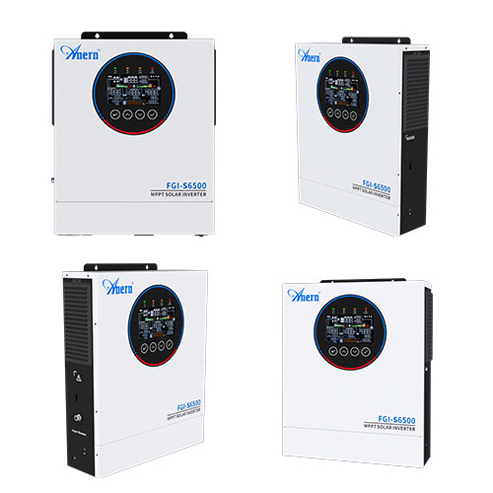

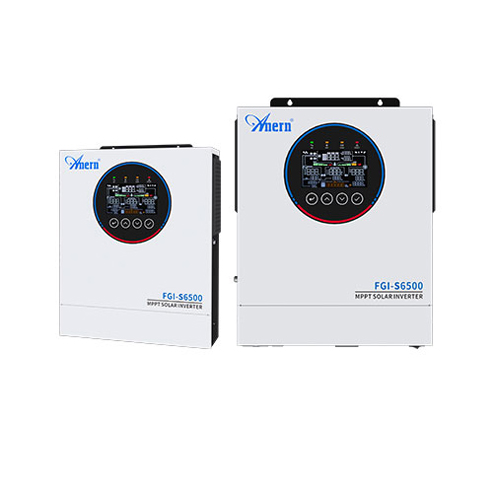

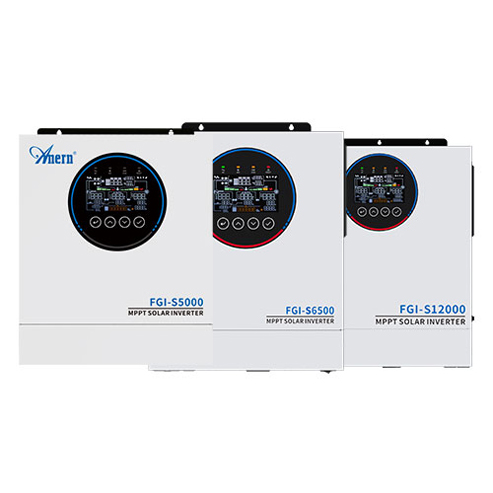

AN-FGI-S is a high-efficiency, reliable, and convenient high-frequency inverter. It innovatively integrates pure sine wave inverter, high-power MPPT solar controller, and intelligent battery management, reducing initial system costs and subsequent battery replacement and maintenance burdens. It also simplifies the installation and deployment process, making it an ideal choice for those seeking efficient, convenient, and reliable off-grid power solutions.
| Model | AN-FGI-S5000 | AN-FGI-S6500 | AN-FGI-S12000 |
| Phase | 1-phase in /1-phase out | 1-phase in /1-phase out | 1-phase in /1-phase out |
| Maximum PV Input Power | 9000W | 9000W | 15000W |
| Rated Output Power | 5000W | 6500W | 12000W |
| MPPT Voltage Range | 60-450Vdc | ||
| Number of MPPT Trackers /Maximum Input Current | 1/27A | 1/27A | 2/22.5A |
| Nominal Output Voltage | 220/230/240VAC | ||
| Acceptable Input Voltage Range | 90-280 VAC | ||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | ||
| Nominal DC Voltage | 24Vdc | 48Vdc | 48Vdc |
| Maximum Solar Charging Current | 160A | 120A | 160A |
| Maximum AC Charging Current | 160A | 120A | 160A |
| Maximum Charging Current | 160A | 120A | 160A |
| DimensionDxWxH(mm) | 410*336*115 | 440*355*117 | 527*435*138 |
| Net Weight (kgs) | 8.0kg | 8.4kg | 14.5kg |

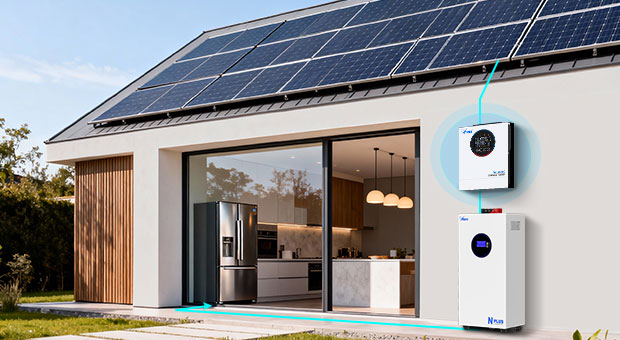

Features automatic lithium battery activation via both AC and photovoltaic power, effectively activating deep discharge of the lithium battery and improving battery efficiency.
Pure sine wave solar inverter;
Built-in anti-glare kit for harsh environments.
Intelligent battery charging design maximizes battery life;
Built-in MPPT solar controller with a maximum charging current of 160A.
Optional Wi-Fi remote monitoring;
Equipped with RGB indicator lights;
One-click factory reset.
Anern off-grid parallel solar inverter factory is committed to providing reliable power solutions for areas without power grid. It has advanced production equipment and technical team to ensure product quality and performance. Our inverters have superior conversion efficiency, adapt to various harsh environments, and are widely used in commercial and industrial fields. Through continuous innovation and strict quality control, we are committed to providing customers with efficient, stable and clean energy solutions and promoting the development of renewable energy.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
