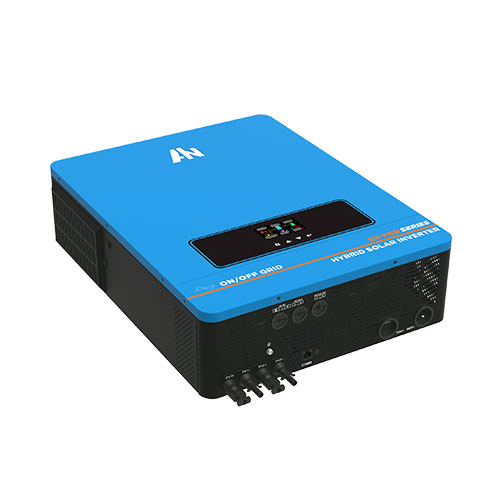

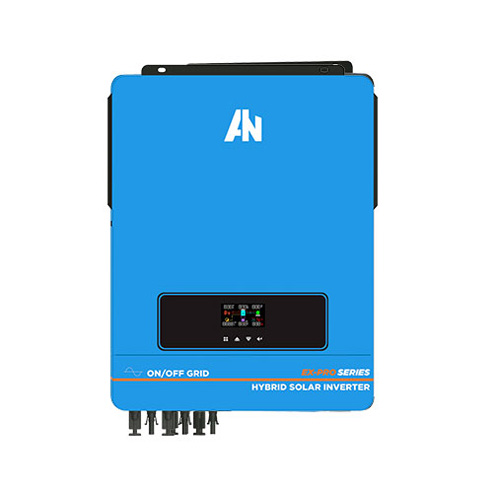

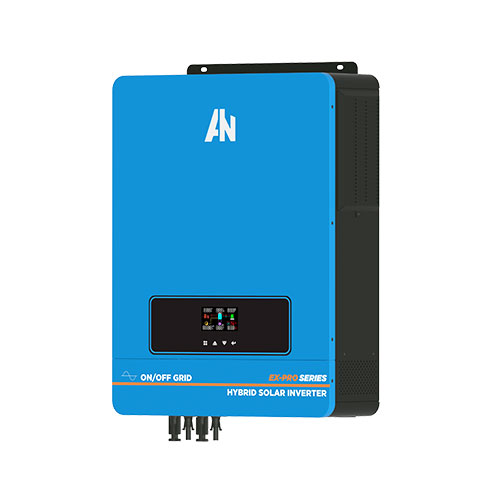

Off-On Grid Hybrid Solar Inverter 7.2KW-10.2KW

Off-On Grid Hybrid Solar Inverter 7.2KW-10.2KW

An-ex-pro series is a new high-frequency on grid off grid hybrid inverter designed by Anern, which is upgraded from the traditional hybrid inverter. Double PV input design, not only makes the solar panel wiring more convenient but also reduces the use of the bus box. The on grid off grid solar inverter with dual AC output mode is the best choice to ensure an uninterrupted power supply to the required load.


Send Inquiry

On/Off Grid Hybrid Solar Inverter Parameter

ModelEX-Pro-7200EX-Pro-8200EX-Pro-10200
Rated Power7200W8200W10200W
Maximum Solar Charging Current160A160A180A
GRID-TIED OPERATION PV Input(DC)
Maximum DC Voltage360VDC/500VDC
Start-up Voltage90VDC/120VDC
MPPT Voltage Range90V-450VDC
Maximum Input Current1/27A
Output Voltage Range195-253VAC
Two Load Output Power
Full Load7200W8200W10200W
Maximum Main Load7200W8200W10200W
Maximum Second Load(battery mode)2400W2733W3400W
OFF-GRID OPERATION
AC Input
AC Start-up Voltage120-140VAC/180VAC
Acceptable Input Voltage Range90-280VAC or 170-280VAC
Nominal Operating Frequency50/60Hz
Surge Power14400W16400W20400W
Hybrid Solar Inverter Off/On Grid  7.2KW-10.2KW Advantages

Hybrid Solar Inverter Off/On Grid 7.2KW-10.2KW Advantages

Hybrid Solar Inverter Off/On Grid  7.2KW-10.2KW Advantages

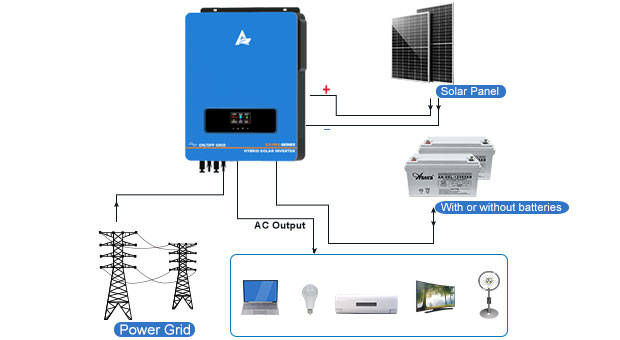

Exclusive R&D of Anern
  • Pure sine wave frequency converter.

  • Anern patented design.

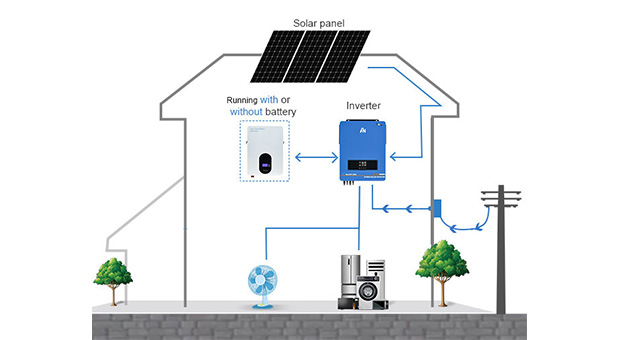

  • Supports off/on-grid mode.


Hybrid Solar Inverter Off/On Grid  7.2KW-10.2KW Advantages

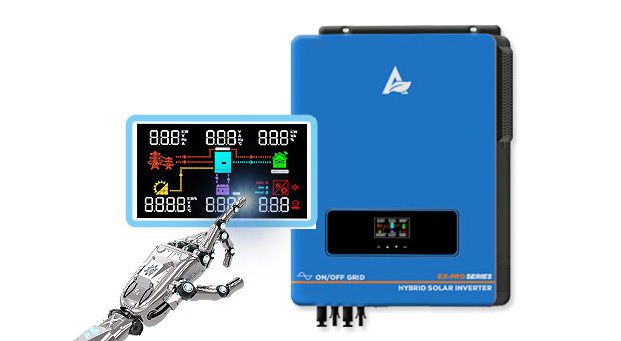

Touch Button
  • Easily to set up the parameters by LCD.

  • Configurable AC/Solar Charger priority via LCD setting.

  • With touch button.


Hybrid Solar Inverter Off/On Grid  7.2KW-10.2KW Advantages

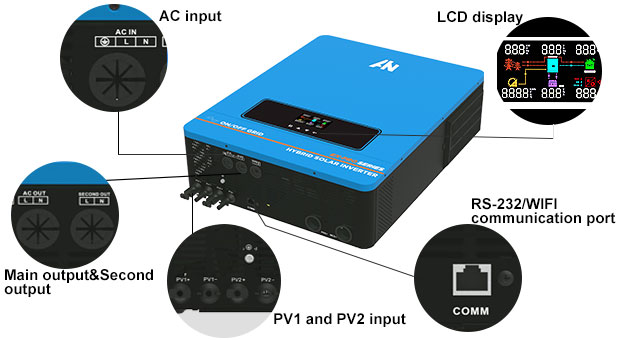

Dual PV Input
  • Inverse-control integrated design.

  • Easy to connect solar panels and reduce the use of the bus box.

  • The controlled consistency of the machine is better.


Hybrid Solar Inverter Off/On Grid  7.2KW-10.2KW Advantages

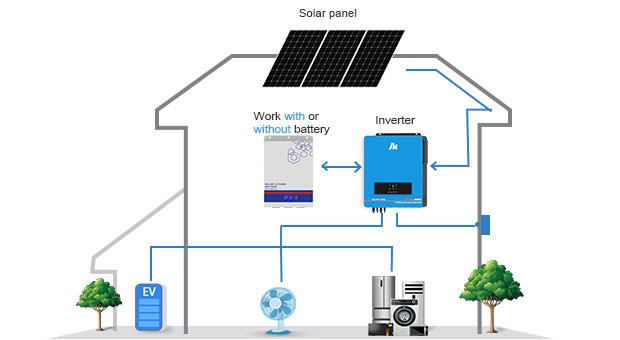

Double AC output
  • The main output of Anern EX-Pro series hybrid solar inverter can be connected to the load of rated power, and the secondary output can be connected to the load of one-third of rated power.

  • Retain the secondary output to ensure uninterrupted power supply for the necessary load.

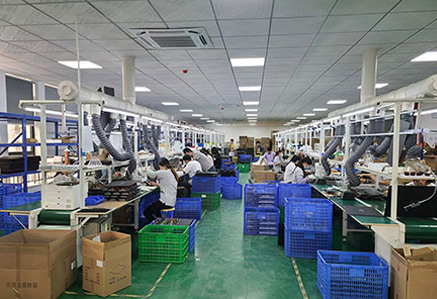

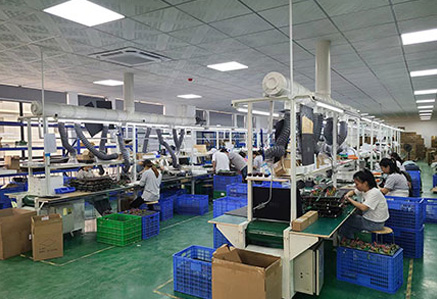

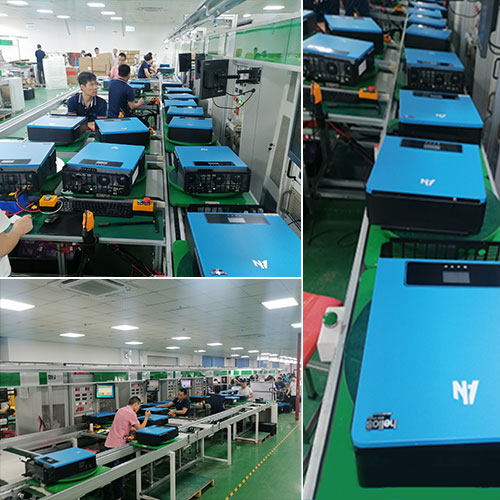

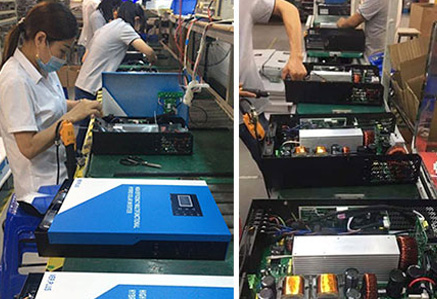

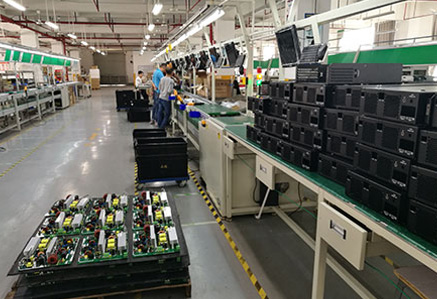

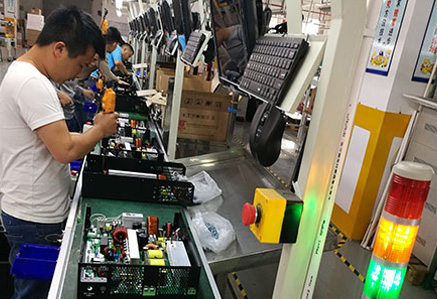

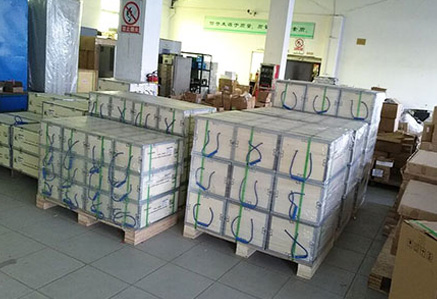

ANERN On Grid Off Grid Solar Inverter Factory

Anern has a professional automated factory and introduces advanced automated production equipment. All of our on grid off grid hybrid inverters have passed ISO9001, CE, ROHS, TUV, and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
