Hybrid Solar Inverter EVO Series 4.2KW 6.2KW

Hybrid Solar Inverter EVO Series 4.2KW 6.2KW

SCI-EVO-4200&6200 series off grid inverters. In addition to retaining all the functions of the original PRO series inverters, the AC dual output function has been added. By adding a secondary output, the duration of continuous operation of important loads with low battery power can be significantly increased. At the same time, the optimisation of the solution makes our EVO series more cost-effective and the best choice for users of solar power systems.

Anern solar products limited time best quote. For Wholesale/Distribution, welcome to consult us.

( *Send inquiry, get exclusive quotation now! )


Send Inquiry

Hybrid Solar Inverter EVO Series 4.2KW 6.2KW Parameter

Model

SCI-EVO-4200

SCI-EVO-6200

Rated Power

4200W

6200W

Maximum PV Input Power

6200W

6500W

Dimension: D x W x H (mm)

420*350*110mm

450*350*110mm

Net Weight (kgs)

9

10

Grid-Tied Operation

Output Voltage Range

195.5-253VAC

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

MPPT DC Voltage Range

60-450VDC

Number of MPPT Trackers/Maximum Input Current

18A

22A

Off-Grid Operation

Surge Power

8400W

12400W

AC Start-up Voltage/Auto Restart Voltage

120-140VAC / 180VAC

Acceptable Input Voltage Range

90-280VAC / 170-280VAC

Nominal Operating Frequency

50/60Hz


Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW

Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW

Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW

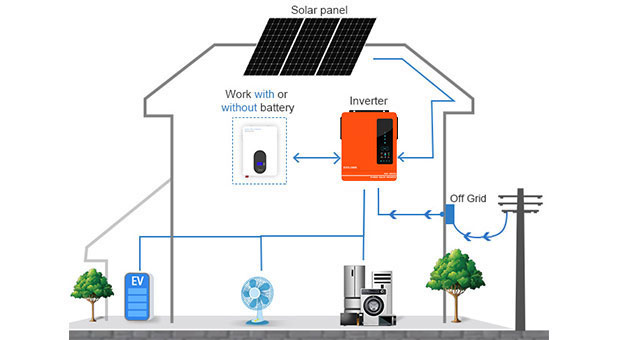

Off Grid Hybrid Inverter
  • Dual AC output.

  • Off grid hybrid inverters have passed ISO9001, CE, ROHS, TUV, and other certifications.


Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW
Direct Start Without Batteries
  • Able to run without batteries.

  • Built-in lithium battery automatic activation.

  • Smart battery charge design to maximize battery lifespan.


Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW
Bulit-In MPPT Solar Controller
  • Max charge current 120A.

  • Max 6200W & 6500W solar input power respectively.

  • Wide PV input voltage range (90-450VDC).


Advantages of Hybrid Solar Inverter EVO Series 4.2KW 6.2KW
WIFI Communication
  • WIFI available for IOS and Android systems.

  • Remote monitoring and operation via Mobile App.

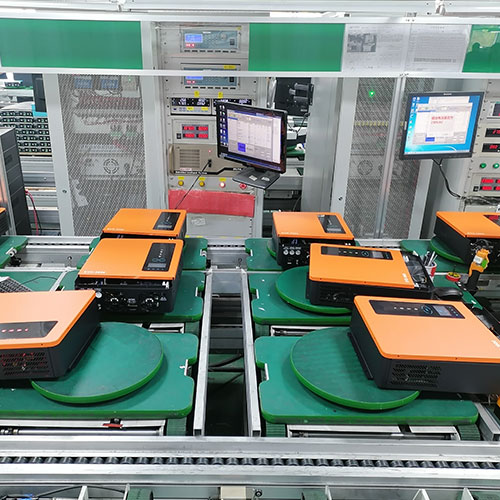

ANERN Hybrid Solar Inverter EVO Series 4.2KW 6.2.KW Factory

Anern has a professional automated factory and introduces advanced automated production equipment. All of our off grid hybrid inverters have passed ISO9001, CE, ROHS, TUV, and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
