Anern, with 15 years of experience in the energy industry, from solar systems to solar accessories, from indoor LED lighting to outdoor solar lighting, we are one of the sources to meet your diverse needs.
We have cooperated with more than 200 countries in solar energy projects and road lighting projects. We have exported products to many countries and participated in many important government projects around the world.
We provide customers with one-stop solar energy solutions and road lighting solutions, and provide ODM and OEM services, we can meet customers one-time procurement, to provide customers with more comprehensive services.
Anern has 15 years of experience in solar lighting and solar product manufacturing. Anern Industry Group Limited is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.

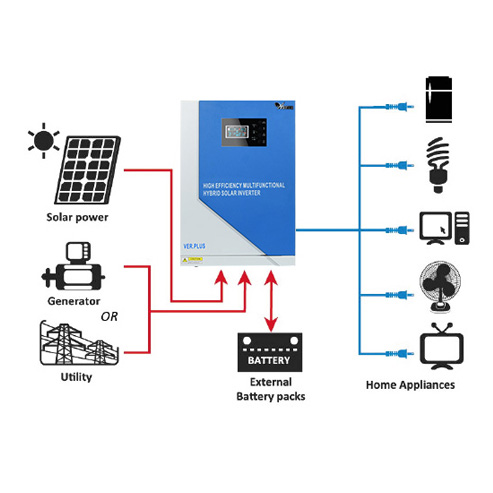

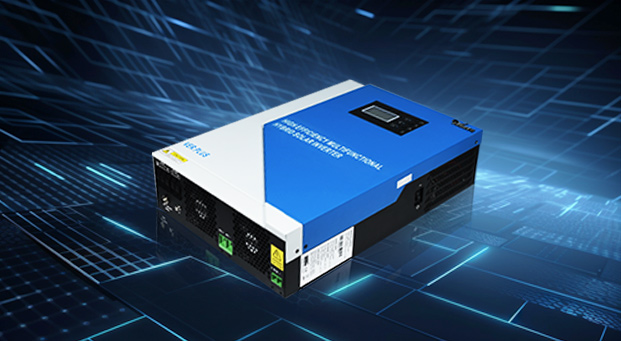

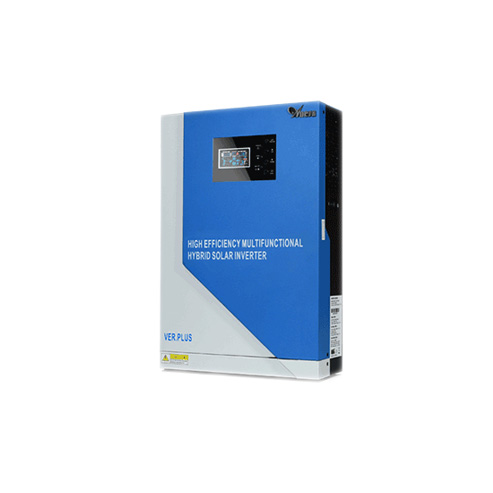

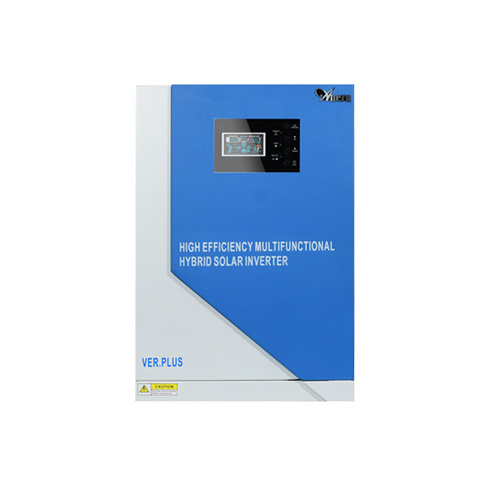

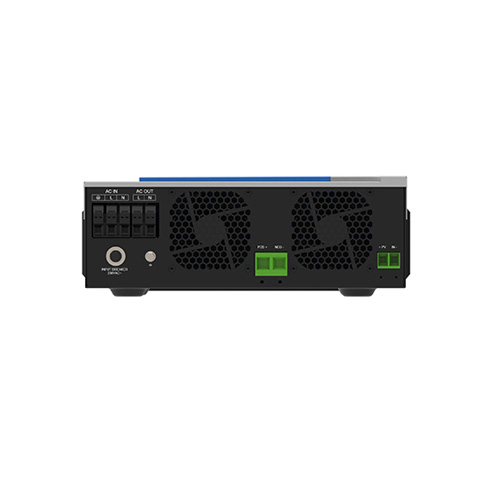

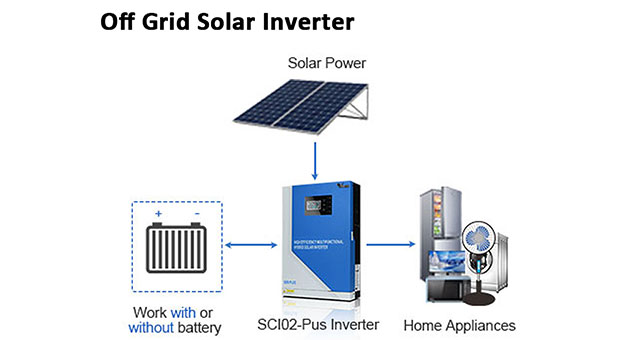

An-SCI02 3.5 kW/5.5 kW solar hybrid inverter series combines the functions of a solar inverter and solar controller. This pure sine wave hybrid solar inverter has excellent electrical parameters that increase the power generation and efficiency of the entire system. It is an important component of the off-grid solar power supply system, which can be directly used by the load without connecting the battery.
| Model | SCI02-3500W | SCI02-5500W |
| Rated Power | 230VAC/3500W | 230VAC/5500W |
| Surge Power | 7000VA | 11000VA |
| Battery Voltage | 24 VDC | 48 VDC |
| Maximum PV Array Power | 5000 W | 6000 W |
| Selectable Voltage Range | 170-280VAC/90-280VAC | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| Transfer Time | 10 ms/20 ms | |
| Maximum Charging Current | 100A | |
| Dimension:D x W x H (mm) | 100x300x440mm | |
| Communication interface | RS232/WIFI | |
High efficiency pure sine wave inverter
Rich experience in photovoltaic industry since 2009
Excellent quality, maintenance free and durable design concept.
Configurable battery charging current based on applications via LCD setting.
Battery performance optimization, charger intelligent design.

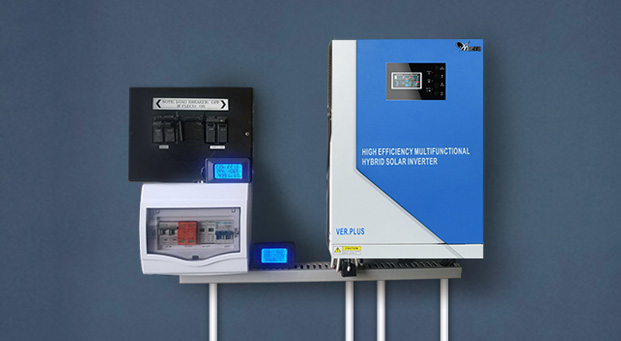

Wall-mounted system for system configuration.

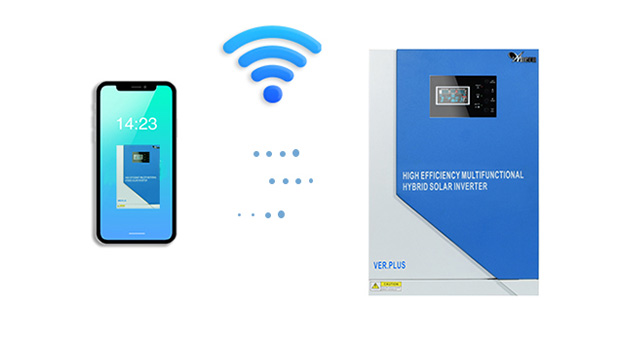

AN-SCI02 pure sine wave solar inverter series supports WIFI wireless monitoring.
Monitor and operate remotely using a mobile phone.
With overload, overheating, short circuit, reverse connection and other protection functions.
Good output waveform and low distortion.

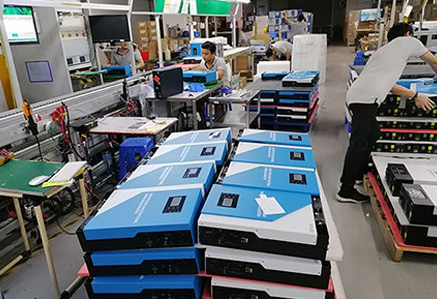

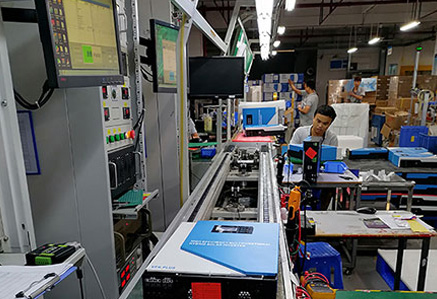

Anern has a professional automated factory and introduces advanced automated production equipment for our pure sine wave solar power inverter production. Our 3.5/5.5 kva hybrid solar inverters have passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.

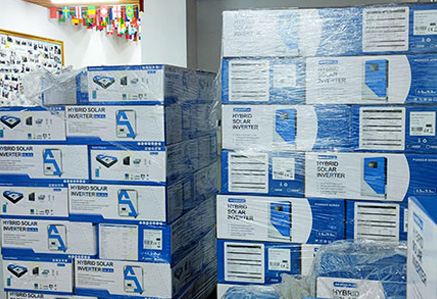

Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
