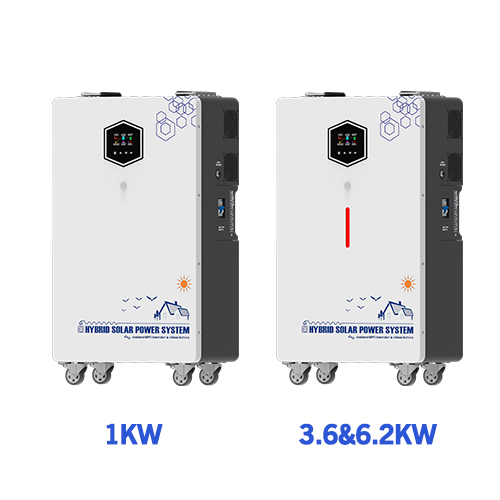

Model | MPSG-E1000 | MPSG-E3600 | MPSG-E6200 |
Battery Voltage | 12.8V | 25.6V | 48V |
Inverter | |||
RA TED POWER | 1000W | 3600W | 6200W |
Input Voltage Range | 220/230/240VAC | ||
Input Frequency | 50/60Hz | ||
Output Voltage | 195.5-253VAC | ||
Output Frequency | 49-51±1Hz / 59-61±1Hz | ||
Speficifation Of Built-in Lithium Battery | 1280WH | 2560WH | 4800WH |
Solar Input | |||
Max. PV Power | 550W | 6200W | 6500W |
Range Of Charging Voltage | 20-150VDC | 60-450VDC | 60-450VDC |
Rated Charge Current | 80A | 120A | 120A |
PHYSICAL | |||
External Size:W*D*H(mm) | 321*491*140.5mm | 441*701*231mm | 441*701*231mm |
Package Size:W*D*H(mm) | 570*390*230mm | 810*540*340mm | 810*540*340mm |

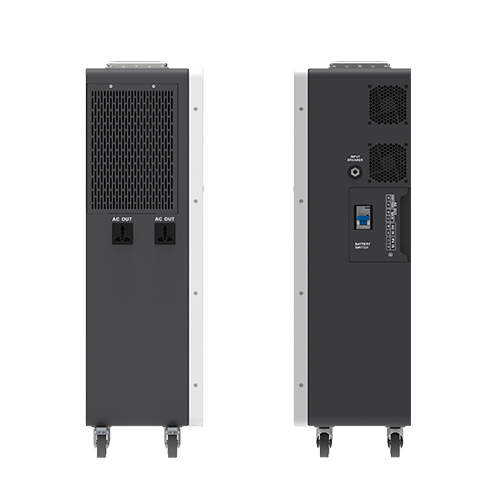

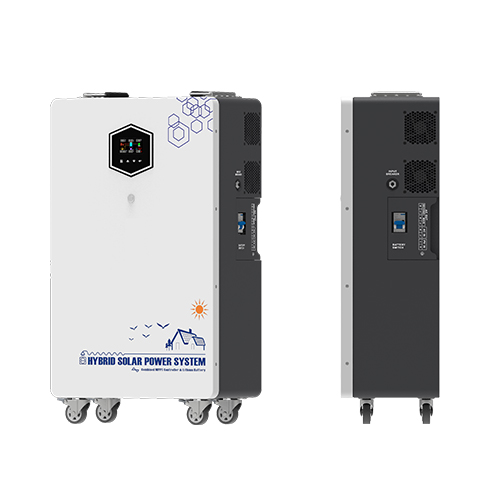

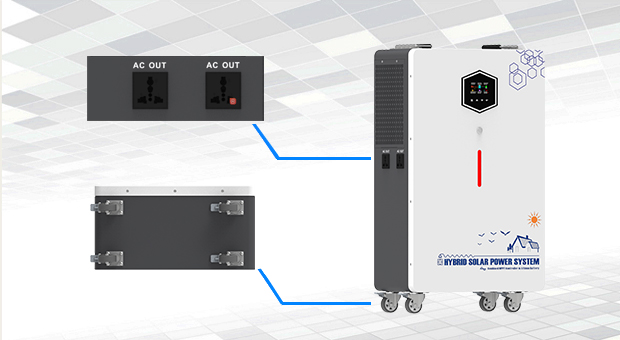

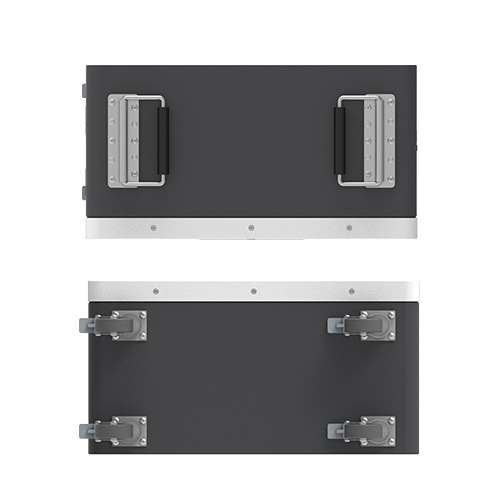

Portable and Standing Wheel design, dual AC output function, easy to move and use;
Exhaust fan intelligent heat dissipation, more safe and reliable;
Intelligent charging design to maximize battery lifespan.
Bulit-in Pure Sine Wave Solar Hybrid Inverte and new LiFePo4 lithium battery;
Wide PV input voltage range (20-150VDC/6--450VDC);

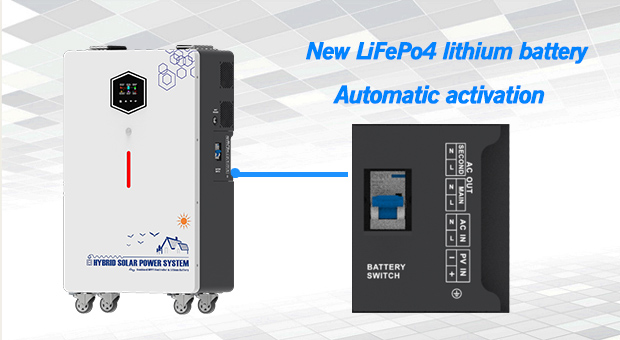

With function of Lithium battery automatic activation by PV(3600&6200).

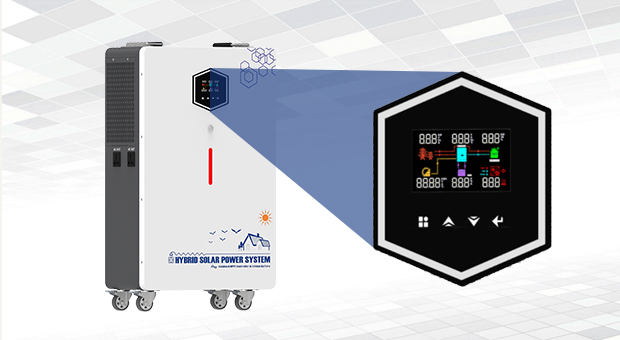

You can directly view the operating parameters on the display screen
Understand the working status of the device through the RGB indicator light.

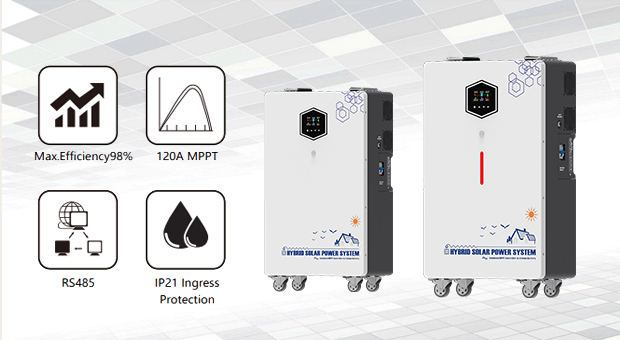

Bulit-in MPPT solar controller, max charge current 120A;
With intelligent control function, it can optimize the charging and discharging state of the solar storage system to ensure the safe and stable operation.
Anern has a professional automated factory and introduces advanced automated production equipment. All products have passed ISO9001, CE, ROHS, TUV and other certifications, and the quality meets international standards. Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.

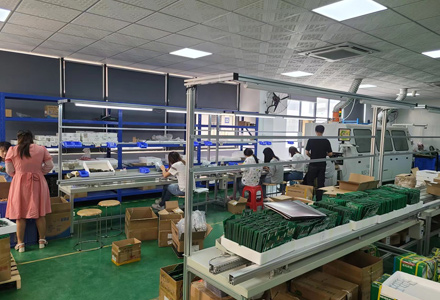

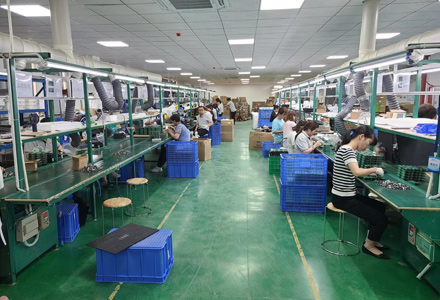

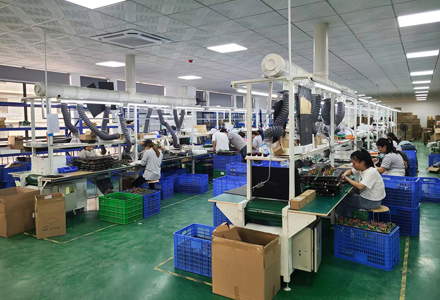

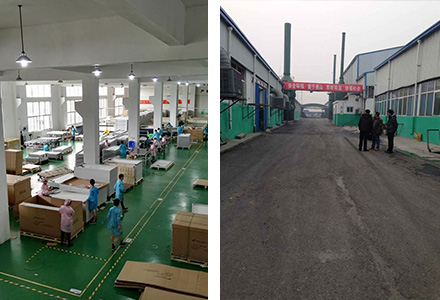

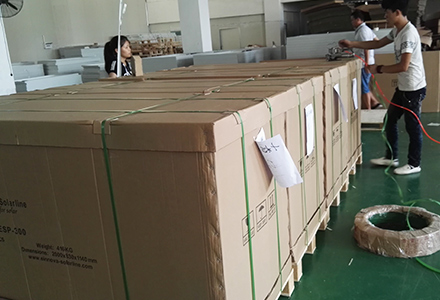

Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
